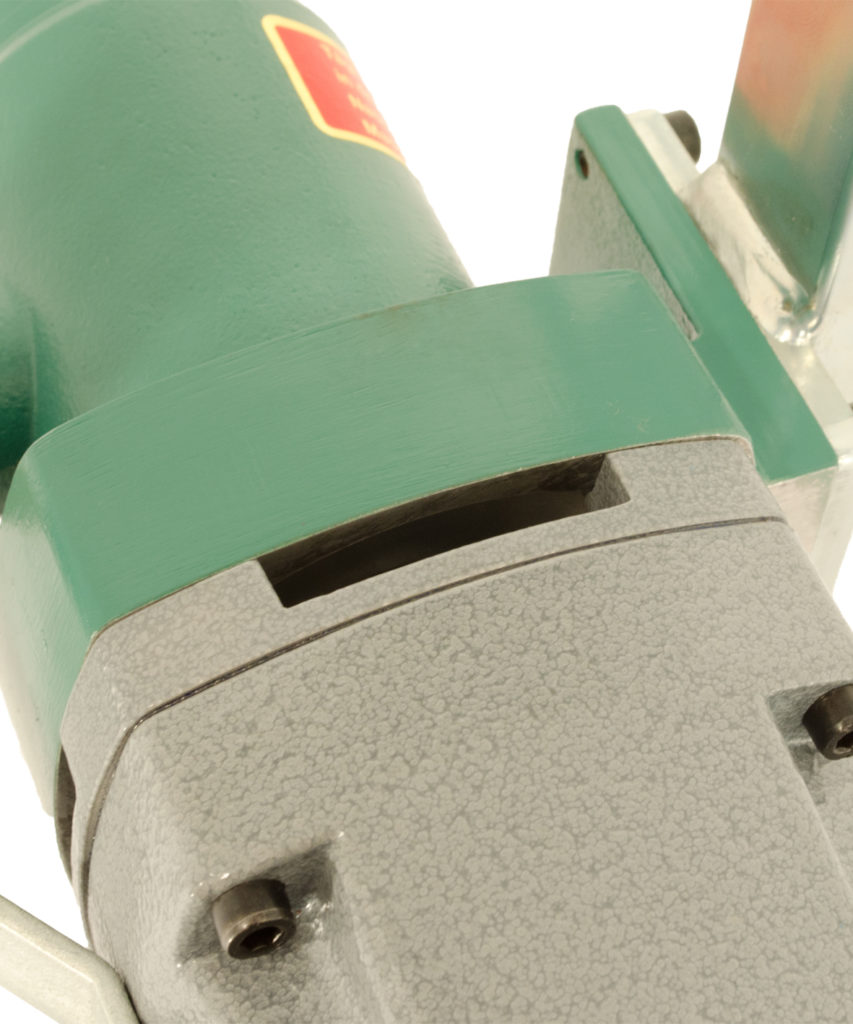

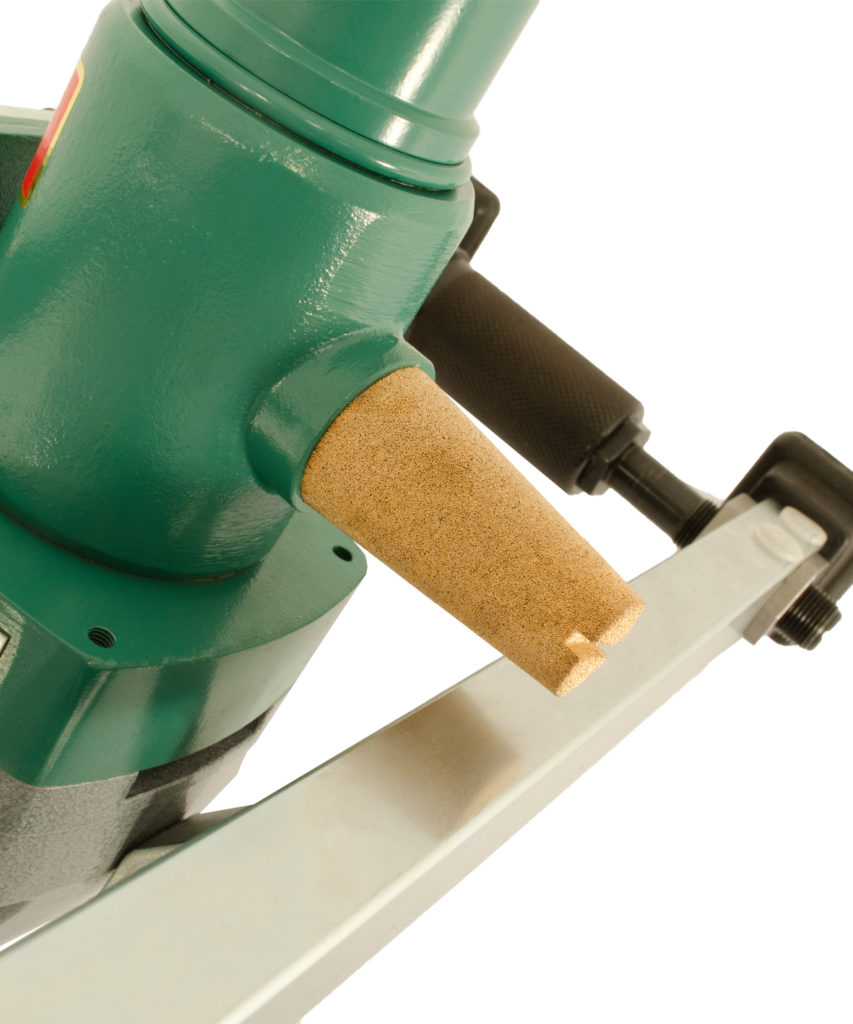

Mixer

Order Number: 7 1113 0010
Pneumatic mixer, for all mixing work with two speed ranges.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Actuation: Twist throttle
Actuation: Twist throttle

Technical Data

ORDER NO. 7 1113 0010
Energy Source Pneumatic
Operating Pressure 6 bar
Valve type Twist throttle
Stirring tool max. dia. 160.00 mm
Mix capacity/batches up to 80.00 kg
Power 1.60 kW
Gear stages 2
Speed 1st gear 0-190 rpm
Speed 2nd gear 0-420 rpm
Air consumption 1.90 m³/min
Tool shank/thread M14 mm
Connection R3/4"male
Noise level LpA 80.0 dB(A)
Noise level LWA 91.0 dB(A)
Vibration level <2.5 m/s²
Weight 10.5 kg
Fields of application / branch Plant and mechanical construction

Accessories

ORDER NO. Type Tool adapter Diameter [mm] Length [mm]
9 7001 0010 Round stirrer, for liquid material with low viscisity M14 male 100.00 600.00
9 7001 0020 Round stirrer, for liquid material with low viscisity M14 male 120.00 600.00
9 7002 0010 Helicon ribbon stirrer, for doughy material with high viscosity M14 male 100.00 600.00
9 7002 0020 Helicon ribbon stirrer, for doughy material with high viscosity M14 male 120.00 600.00
9 7002 0030 Helicon ribbon stirrer, for doughy material with high viscosity M14 male 135.00 600.00
9 7002 0040 Helicon ribbon stirrer, for doughy material with high viscosity M14 male 160.00 600.00
9 7003 0010 Mortar stirrer, for finishing compound, lime and concrete M14 male 120.00 600.00
9 7003 0020 Mortar stirrer, for finishing compound, lime and concrete M14 male 140.00 600.00
9 7003 0030 Mortar stirrer, for finishing compound, lime and concrete M14 male 160.00 600.00
9 7004 0010 Disc Stirrer, for mixing of liquid mediums M14 male 120.00 590.00
9 7004 0020 Disc Stirrer, for mixing of liquid mediums M14 male 150.00 500.00
ORDER NO. Description Tool adapter Length [mm]
9 7005 0050 Extension M14 150.00
9 7005 0010 Extension M14 250.00
ORDER NO. Description Height [mm] Width [mm] Length [mm] Mixer clamp dia. [mm] Weight [kg]
9 7006 0020 Stand 1,600 600.00 800.00 40.00/60.00 25.0
ORDER NO. Description
9 2406 0260 Portable service unit with pressure regulator 3/4“
9 2406 0650 Portable service unit with protection housing and pressure regulator 3/4“
More accessories on request.
