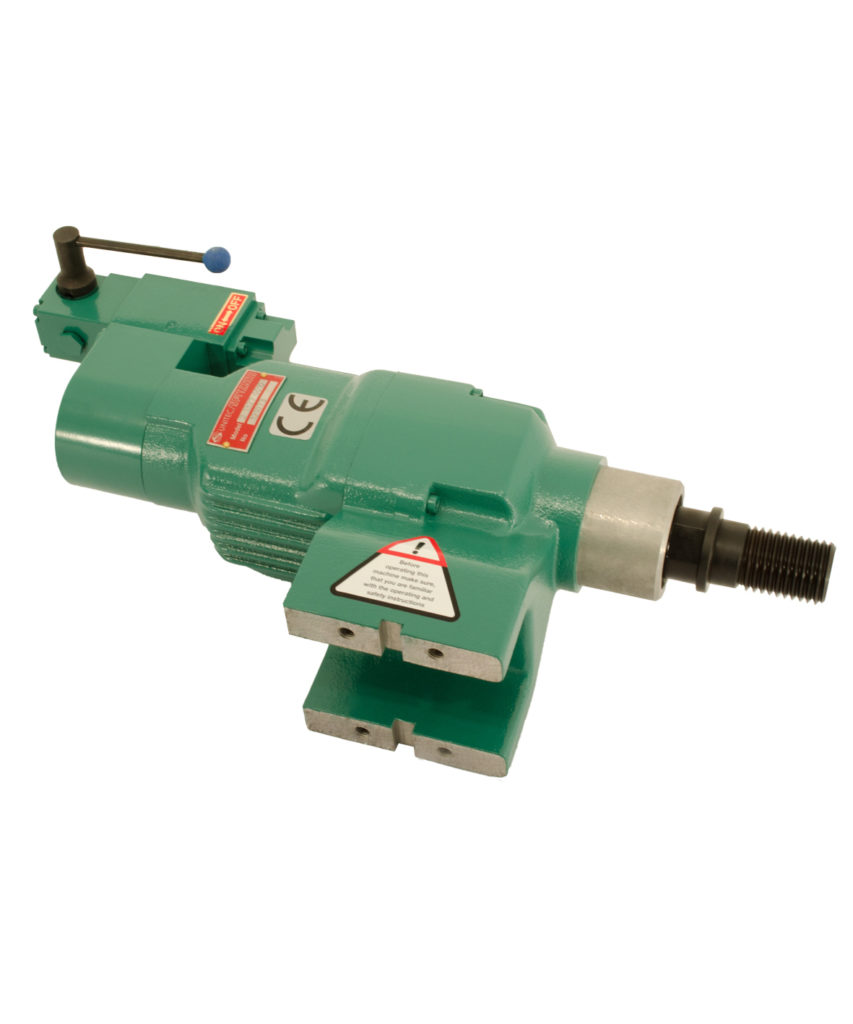

Core Drill Unit

Order Number: 2 1327 0010

The strongest hydraulic core drill unit for drilling up to 300 mm with a drill rig. Hydraulic hose set included.
Drill rig order no. 9 4101 0090

Energy source: Hydraulic

Operating pressure: 140 bar

Drilling capacity with drill rig: up to dia. 300 mm

Underwater operation

ATEX: II2GExhIIBT5Gb

ORDER NO.	2 1327 0010
ATEX Specification	II2GExhIIBT5Gb
Energy source	Hydraulic
Operating pressure	140 bar
Drill bit connection	1 1/4" UNC male / R1/2" female mm
Max. drill bit dia.	300.00 mm
Application	with drill rig
Gear stages	3
Speed stages	380/900/1,800 rpm
Torque stages	72/45/25 Nm
Power	3.10 kW
Volume flow	22-45 l/min
Centering diameter	60.00 mm
Machine length	490.00 mm
Anschluss	R3/4"male Connection
Hydraulic hose connection	Flat-Star A250-OM/OF-1/2”BSP
Cooling water connection	Gardena System
Hydraulic medium	Hydraulic oil
Hydraulic circuit type	oopen circuit
Oil filtration class	ISO-level of purity 20/18/13
Temperature of oil	-34 up to +82 °C
Viscosity of oil	>13 centistokes
Noise level LpA	80.0 dB(A)
Noise level LWA	91.0 dB(A)
Vibration level	<2.5 m/s²
Weight	9.0 kg
Fields of application / branch	Energy and pipeline construction; Plant and mechanical construction; Underwater Work

ORDER NO.	Drill bit dia. [mm]	Optimum drilling speed [rpm]	Peripheral speed [m/s]	Connection [inch]	Usable length [mm]
9 2527 0010	16.00	4,500	3.53	R1/2“	320.00
9 2527 0020	20.00	3,200	3.35	R1/2“	400.00
9 2527 0030	25.00	2,500	3.27	R1/2“	400.00
9 2527 0040	30.00	2,200	3.45	R1/2“	400.00
9 2527 0050	35.00	1,900	3.48	R1/2“	400.00
9 2527 0060	40.00	1,700	3.55	R1/2“	400.00
9 2527 0070	45.00	1,500	3.53	R1/2“	400.00
9 2527 0080	50.00	1,300	3.40	R1/2“	400.00
9 2527 0090	55.00	1,200	3.45	R1/2“	400.00
9 2527 0100	60.00	1,100	3.45	R1/2“	400.00
9 2527 0110	68.00	1,000	3.40	R1/2“	400.00
9 2527 0120	72.00	900	3.30	R1/2“	400.00
9 2526 0140	82.00	800	3.35	1 1/4“UNC	450.00
9 2526 0160	92.00	680	3.20	1 1/4“UNC	450.00
9 2526 0180	102.00	620	3.25	1 1/4“UNC	450.00
9 2526 0200	112.00	570	3.28	1 1/4“UNC	450.00
9 2526 0220	122.00	520	3.26	1 1/4“UNC	450.00
9 2526 0240	132.00	470	3.20	1 1/4“UNC	450.00
9 2526 0260	142.00	420	3.07	1 1/4“UNC	450.00
9 2526 0280	152.00	390	3.06	1 1/4“UNC	400.00
9 2526 0300	162.00	360	3.01	1 1/4“UNC	450.00
9 2526 0320	172.00	340	3.02	1 1/4“UNC	450.00
9 2526 0340	182.00	320	3.01	1 1/4“UNC	450.00
9 2526 0360	192.00	300	2.98	1 1/4“UNC	450.00
9 2526 0380	200.00	280	2.93	1 1/4“UNC	450.00
9 2526 0390	212.00	270	2.97	1 1/4“UNC	450.00
9 2526 0400	225.00	250	2.88	1 1/4“UNC	450.00
9 2526 0410	232.00	220	2.65	1 1/4“UNC	450.00
9 2526 0430	250.00	180	2.36	1 1/4“UNC	450.00
9 2526 0480	300.00	130	2.04	1 1/4“UNC	450.00

ORDER NO.	Description
9 4101 0090	Drill rig for angular holes under 45°-90° up to dia. 300 mm

ORDER NO.	Description
9 2902 0280	Adapter from 1 1/4“ UNC female to M18x1.5 male
9 2902 0290	Adapter from 1 1/4“ UNC female to Weldonschaft 1 1/4“ female
9 2902 0350	Adapter from 1 1/4“ UNC female to Weldon 3/4“ female
9 2902 0240	Adapter from R 1/2“ for drill chuck type 9 2911 0040 and type 9 2911 0050
9 2911 0040	Drill chuck for drill bit dia. 1.5 up to 13 mm
9 2911 0050	Druill chuck for drill bit dia. 3 up to 16 mm

ORDER NO.	Description	Connection (machine side)	Connection (drill bit)	Length [mm]
2 1315 7020	Verlängerung	1 1/4“ UNC female	R1/2" female	300.00
2 1319 7020	Extension	1 1/4“ UNC female	1 1/4“ UNC male	100.00
2 1318 7020	Extension	1 1/4“ UNC female	1 1/4“ UNC male	200.00
2 1314 7020	Extension	1 1/4“ UNC female	1 1/4“ UNC male	300.00
2 1316 7020	Extension	1 1/4“ UNC female	1 1/4“ UNC male	400.00
2 1322 7020	Extension	1 1/4“ UNC female	1 1/4“ UNC male	500.00

ORDER NO.	Description
2 1317 9020	Hydraulic hose set

ORDER NO.	Description
5 8002 9100	Water tank 10l
2 1315 9500	Tool set
5 1212 9000	Carrying case
9 9902 0120	Multi oil for cleaning and protection
