Drive Unit

Order Number: 3 6243 0010

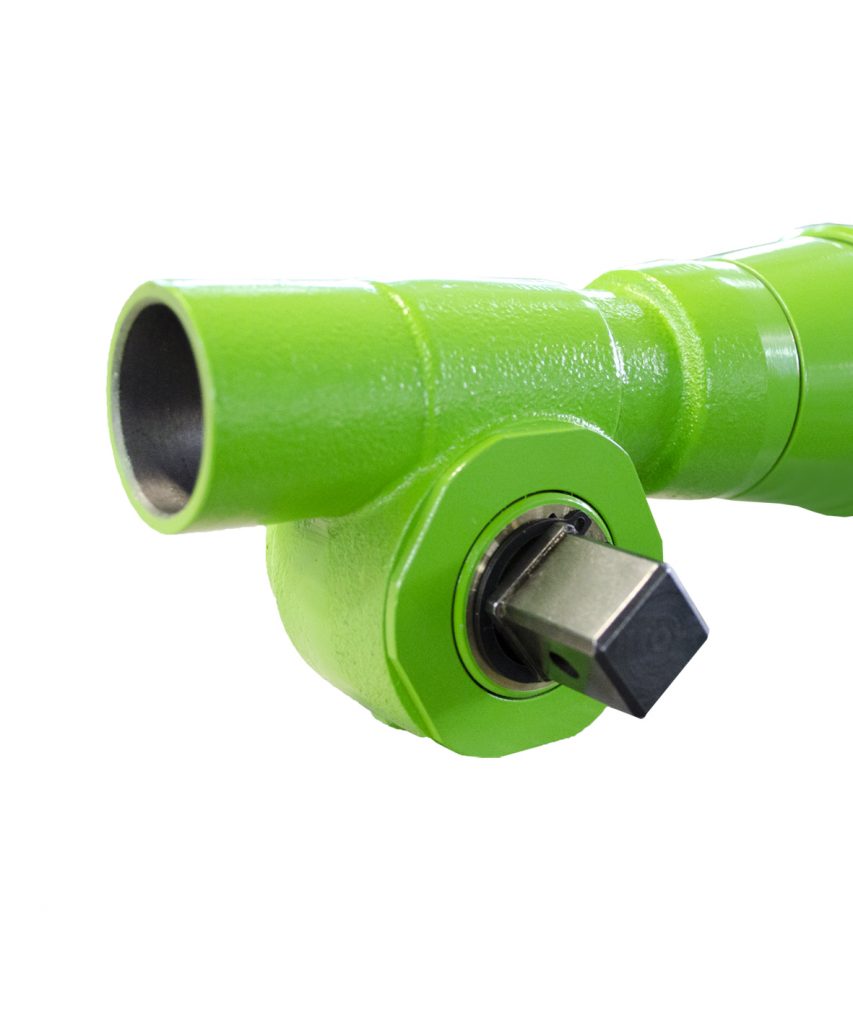

Hydraulic drive unit with lateral output drive and □ 20 mm tool holder.
Energy source: Hydraulic
Energy source: Hydraulic
Operating pressure: 90-140 bar
Operating pressure: 90-140 bar
Tool holder: □20 mm
Tool holder: □20 mm
Direction of rotation: left
Direction of rotation: left
ATEX: II2GExhIIBT4Gb
ATEX: II2GExhIIBT4Gb

Technical Data

ORDER NO. 3 6243 0010
ATEX Specification II2GExhIIBT4Gb
Energy source Hydraulic
Operating pressure 90-140 bar
Tool holder □20 mm female
Valve type Safety twist throttle
Direction of rotation left
Torque 160 Nm
Speed (under load) 95 rpm
Power 1.60 kW
Volume flow 20-50 l/min
Mittenabstand 30.0 mm
Height 90.0 mm
Length 498.0 mm
Connection M18x1.5

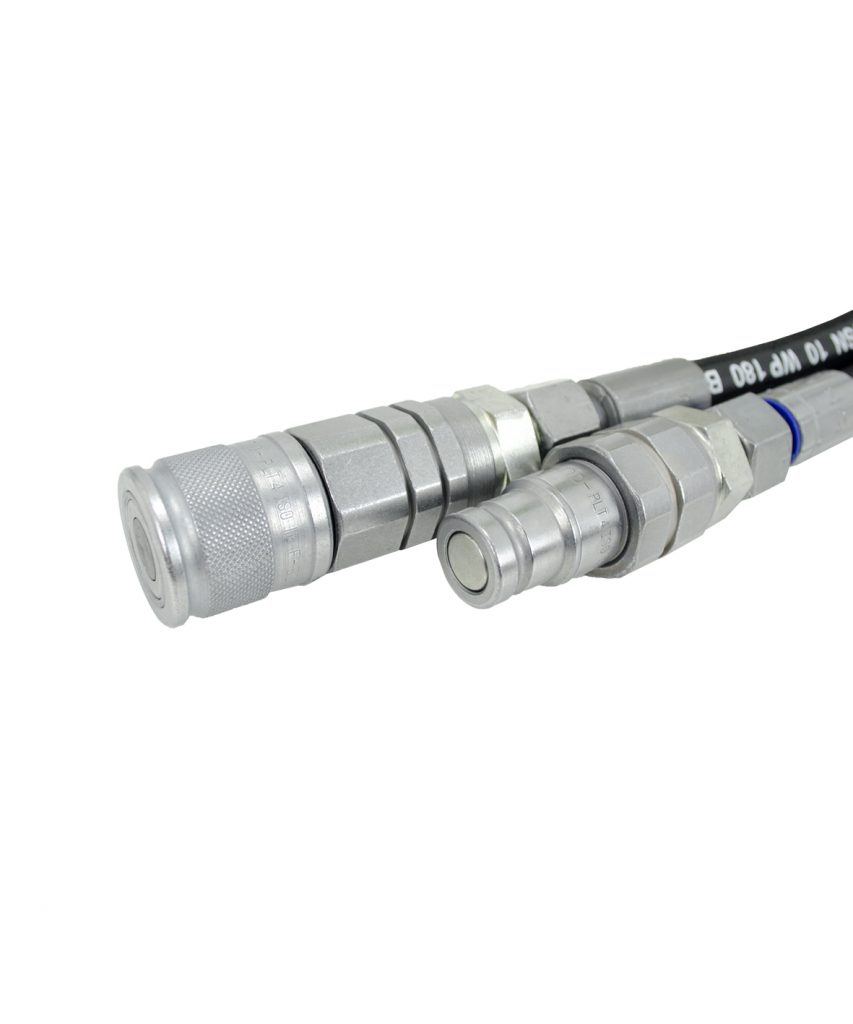

Hydraulic hose connection Flat-Star A250-OM/OF-1/2"BSP
Hydraulic medium Hydraulic oil
Hydraulic circuit type open circuit
Oil filtration class ISO-level of purity 20/18/13
Temperature of oil -34 up to +82 °C °C
Viscosity of oil >13 centistokes centistokes
Noise level LpA <70.0 dB(A)
Vibration level <2.5 m/s²
Weight 10.0 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

ORDER NO. Description Length [mm] Clamping system
6 1014 9600 Reaction bar (as a torque-support) 280-354 Quick-release
ORDER NO. Description For machine adapter Output
3 6212 7910 Square drive (on one side) □ 20 female 3/4" male
3 6339 4910 Square drive (on two sides) □ 20 female 1/2" male
6 1015 7030 Square drive (on two sides) □ 20 female 3/4" male
6 1016 7940 Square drive (on one side) □ 20 female 1" male
6 1018 7940 Square drive (on two sides) □ 20 female 1/2" male
6 1017 7940 Square drive (on two sides) □ 20 female 3/4" male
ORDER NO. Description
6 1055 9200 Cobver (for one side), mountable on both sides
