Corner Drill

Order Number: 2 1701 0010

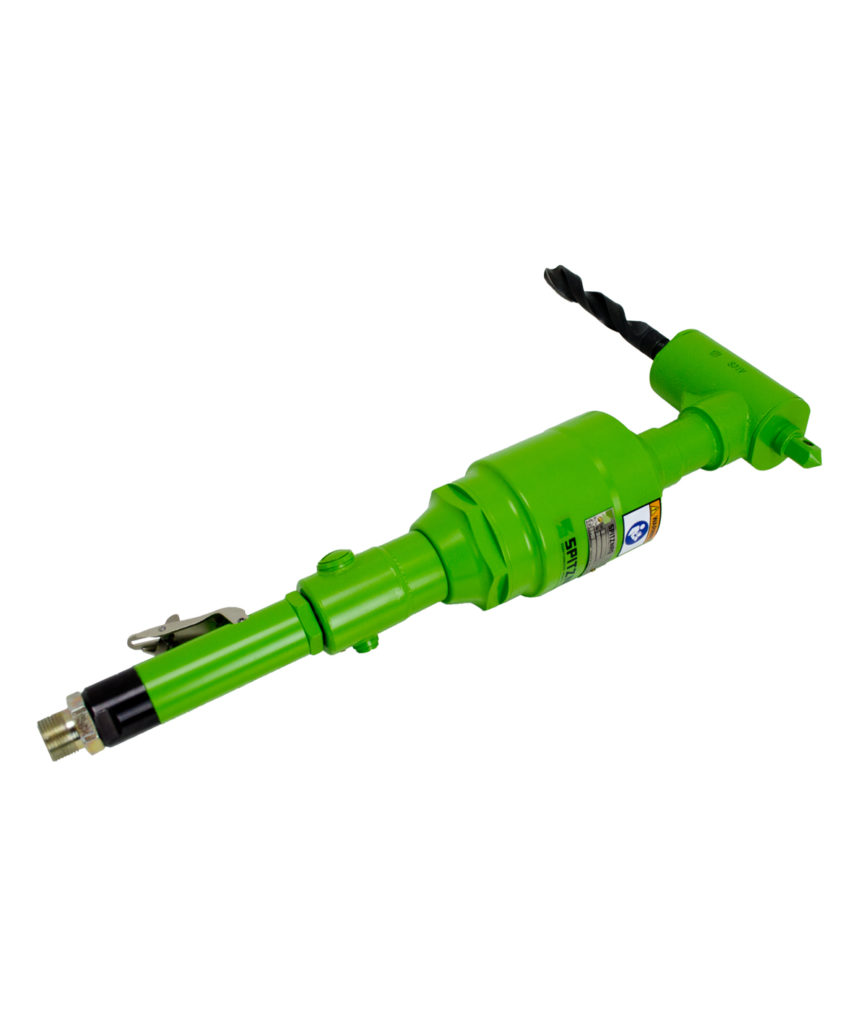

The pneumatic corner drill for drilling and reaming with MT2 tool holder.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Tool holder: MT2
Tool holder: MT2
Actuation: Safety lever valve
Actuation: Safety lever valve
Direction of rotation: right
Direction of rotation: right
Underground mining
Underground mining
ATEX: IM2ExhIMbT6
ATEX: IM2ExhIMbT6

Technical Data

ORDER NO. 2 1701 0010
ATEX Specification IM2ExhIMbT6
Energy source Pneumatic
Operating pressure 6 bar
Shank MT2
Valve type Safety lever valve
Direction of rotation right
Drilling capacity in steel 23.00 mm
Reaming capacity in steel 17.00 mm
Torque 48 Nm
Speed (free) 540 rpm
Speed (under load) 270 rpm
Power 1.33 kW
Air consumption 1.4 m³/min
Spindle stroke 35.00 mm
Distance of center 30.00 mm
Height with feed spindle 160.00 mm
Connection R3/4"male
Noise level LpA 92.0 dB(A)
Noise level LWA 103.0 dB(A)
Vibration level 3.3 m/s²
Weight 8.5 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories

ORDER NO. Description
9 2406 0260 Portable service unit with pressure regulator 3/4“
9 2406 0630 Portable service unit with protection housing and pressure regulator 1/2“
9 2406 0650 Portable service unit with protection housing and pressure regulator 3/4“
ORDER NO. Description
9 3610 0410 Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
9 3610 0420 Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
9 3610 0430 Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
9 2102 0020 Claw coupling, metal sealing, 3/4” ID
ORDER NO. Description
9 9902 0120 Multi oil for cleaning and protection
