Corner Drill

Order Number: 2 1801 0030
Pneumatic corner drill for drilling and reaming with MT3 tool holder.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Tool holder: MT3
Tool holder: MT3
Actuation: Safety twist throttle
Actuation: Safety twist throttle
Direction of rotation: right
Direction of rotation: right
Underground mining
Underground mining

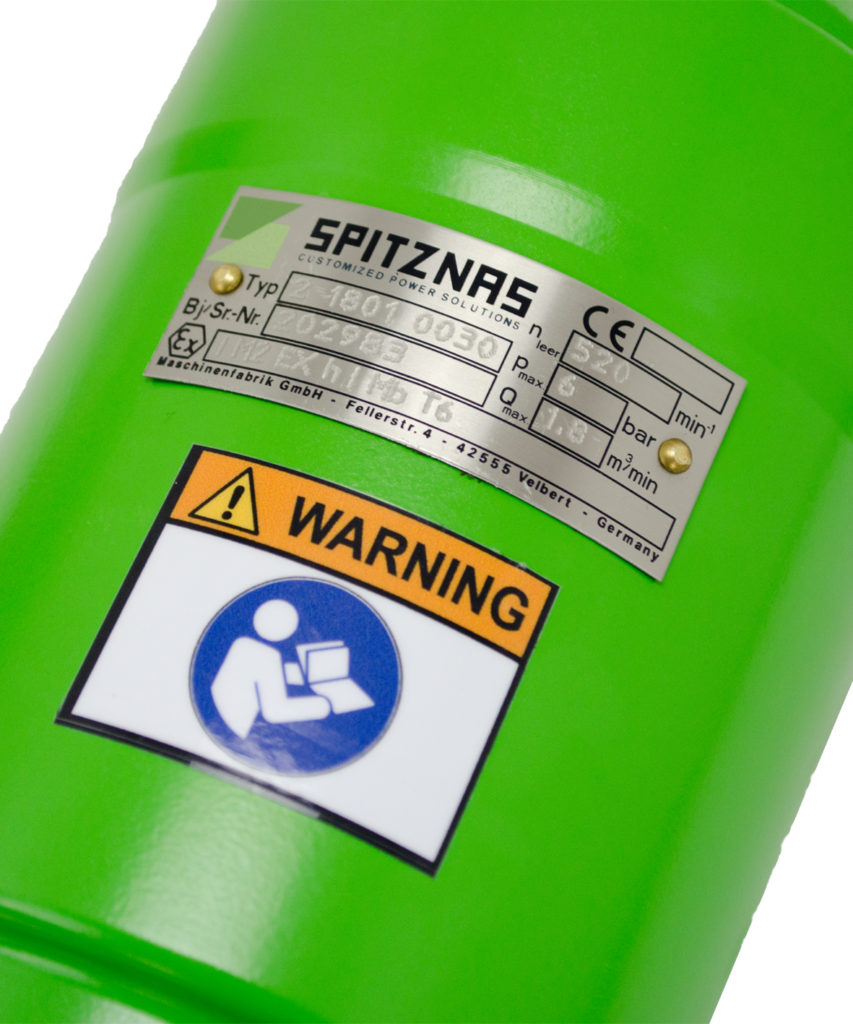

ATEX: IM2ExhIMbT6
ATEX: IM2ExhIMbT6

Technical Data

ORDER NO. 2 1801 0030
ATEX Specification IM2ExhIMbT6
Energy source Pneumatic
Operating pressure 6 bar
Shank MT3
Valve type Safety twist throttle
Direction of rotation right
Drilling capacity in steel 32.00 mm
Reaming capacity in steel 26.00 mm
Torque 72 Nm
Speed (free) 520 rpm
Speed (under load) 260 rpm
Power 1.92 kW
Air consumption 1.80 m³/min
Spindle stroke 43.00 mm
Distance of center 36.50 mm

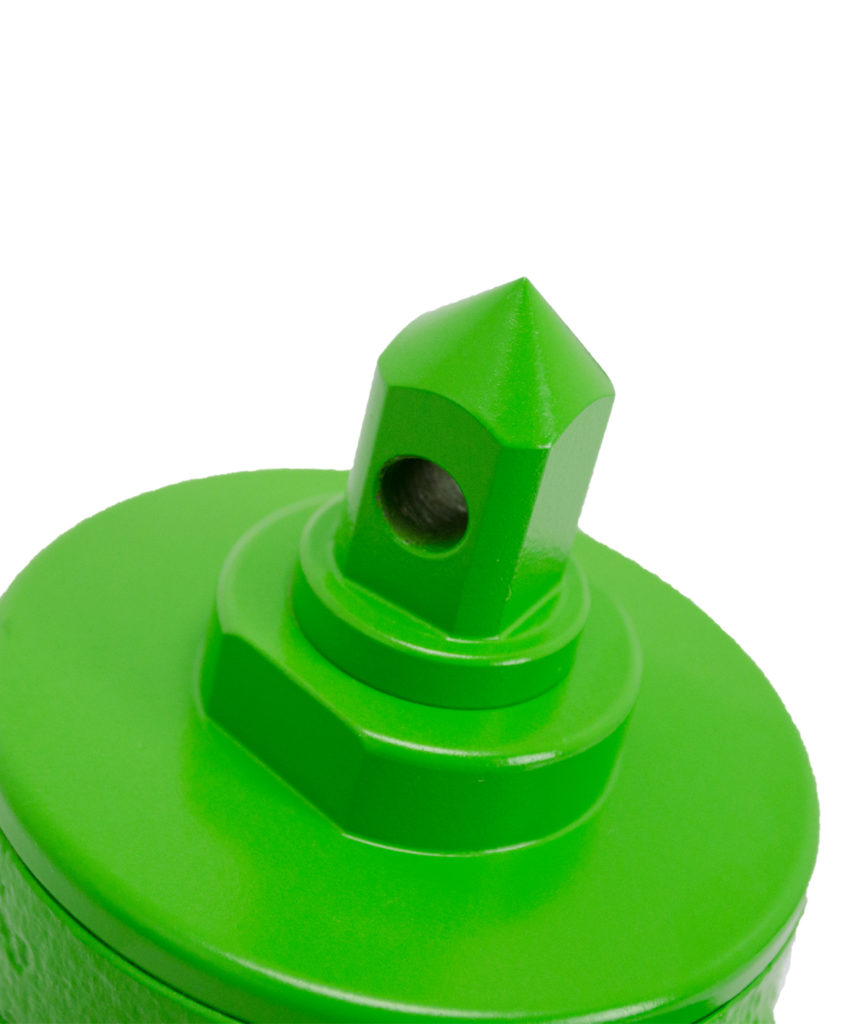

Height with feed spindle 190.00 mm
Connection R3/4"male
Noise level LpA 93.0 dB(A)
Noise level LWA 104.0 dB(A)
Vibration level 3.5 m/s²
Weight 11.7 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories

ORDER NO. Description
9 2406 0260 Portable service unit with pressure regulator 3/4“
9 2406 0630 Portable service unit with protection housing and pressure regulator 1/2“
9 2406 0650 Portable service unit with protection housing and pressure regulator 3/4“
ORDER NO. Description
9 3610 0410 Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
9 3610 0420 Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
9 3610 0430 Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
9 2102 0020 Claw coupling, metal sealing, 3/4” ID
ORDER NO. Description
9 9902 0120 Multi oil for cleaning and protection
