Drill with feed spindle

Order Number: 2 1401 0030

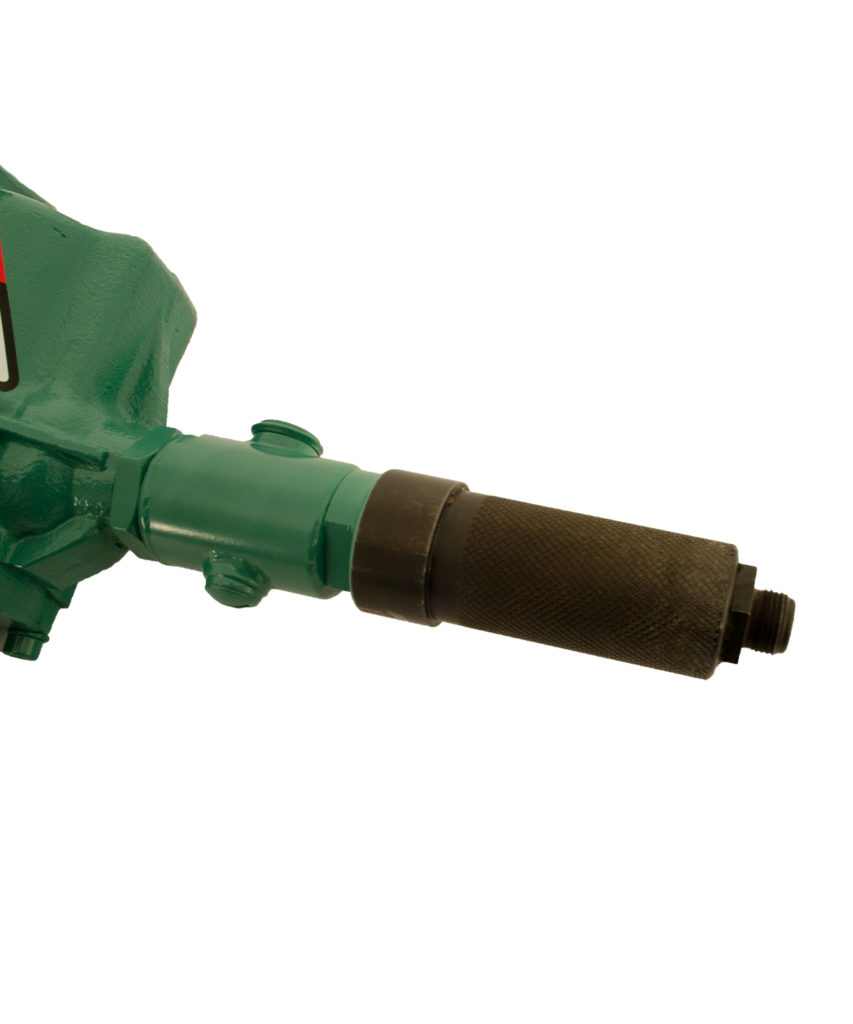

Drill with safety twist throttle and infinitely variable adjustment of speed and drilling depth. Direction of rotation clockwise.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Drill chuck: MT2
Drill chuck: MT2
Valve type: Twist throttle
Valve type: Twist throttle
Direction of rotation: clockwise
Direction of rotation: clockwise

Technical Data

ORDER NO. 2 1401 0030
Energy source Pneumatic
Operating pressure 6 bar
Drill chuck MT2
Valve type Safety twist throttle
Direction of rotation clockwise
Drilling dia. capacity in steel 20.00 mm
Reaming dia. capacity in steel 17.00 mm
Torque 18 Nm
Speed (free) 325 rpm
Power 0.68 kW
Air consumption 0.68 m³/min
Height with feed spindle 248.00 mm
Connection R3/8" male
Noise level LpA 93.5 dB(A)
Noise level LWA 104.0 dB(A)
Vibration level <2.5 m/s²
Weight 5.0 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

ORDER NO. Description
9 2406 0260 Portable service unit with pressure regulator 3/4“
9 2406 0630 Portable service unit with protection housing and pressure regulator 1/2“
9 2406 0650 Portable service unit with protection housing and pressure regulator 3/4“
ORDER NO. Description
9 3610 0410 Pneumatic hose ID 13.00 mm, length 2.5 m, screw-on claw coupling
9 3610 0420 Pneumatic hose ID 16.00 mm, length 2.5 m, screw-on claw coupling
9 3610 0430 Pneumatic hose ID 19.00 mm, length 2.5 m, screw-on claw coupling
9 2102 0020 Claw coupling, metal sealing, 3/4” ID
ORDER NO. Description
9 9902 0120 Multi oil for cleaning and protection
