Drive Unit

Order Number: 3 6212 0030

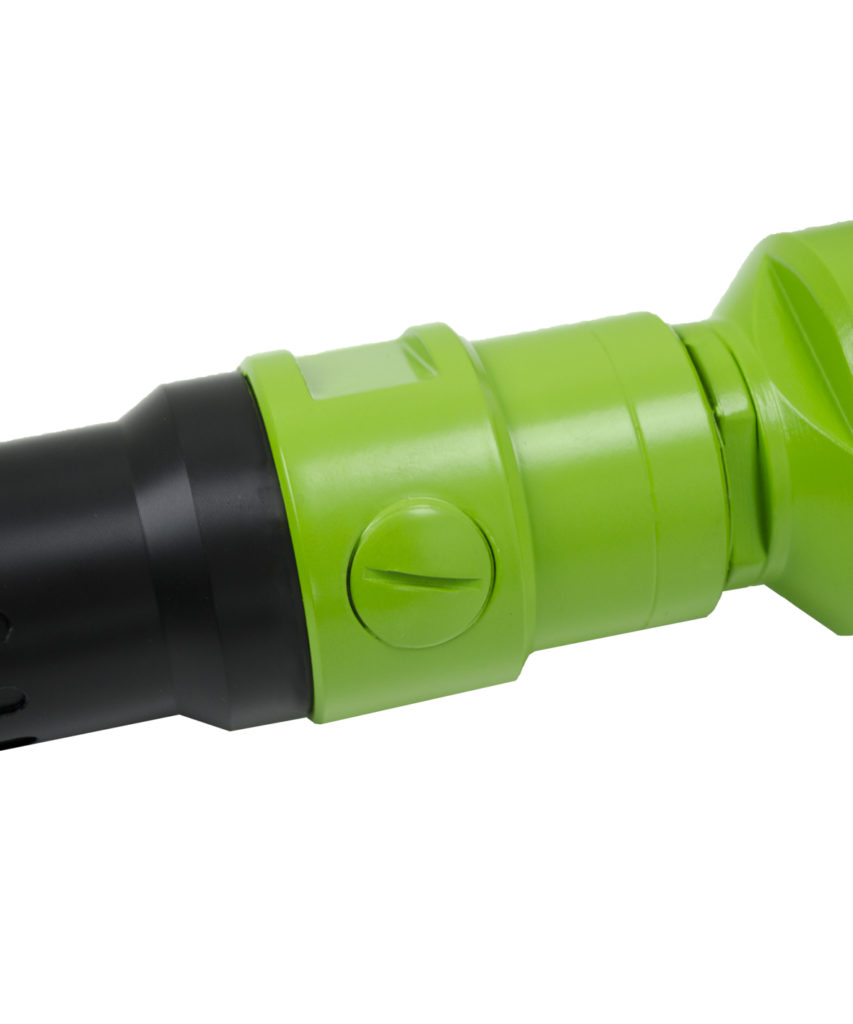

The pneumatic drive unit (nut runner) with lateral output drive, free air outlet and □20 mm tool holder.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Tool holder: □20 mm
Tool holder: □20 mm
Actuation: Safety twist throttle
Actuation: Safety twist throttle
Direction of rotation: right/left
Direction of rotation: right/left

Technical Data

ORDER NO. 3 6212 0030
Energy source Pneumatic
Operating pressure 6 bar
Shank □20 mm female
Valve type Safety twist throttle
Direction of rotation right/left
Torque 280 Nm
Speed (free) 45 rpm
Speed (under load) 24 rpm
Power 0.70 kW
Air consumption 1.30 m³/min
Height 90.0 mm
Length 550.0 mm
Connection R1/2"female
Noise level LpA 91.0 dB(A)
Noise level LWA 102.0 dB(A)
Vibration level <2.5 m/s²
Weight 6.2 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

ORDER NO. Description Length [mm] Clamping system
6 1014 9600 Reaction bar (as a torque-support) 280-354 Quick-release
ORDER NO. Description For machine adapter Output
3 6212 7910 Square drive (on one side) □ 20 female 3/4" male
3 6339 4910 Square drive (on two sides) □ 20 female 1/2" male
6 1015 7030 Square drive (on two sides) □ 20 female 3/4" male
6 1016 7940 Square drive (on one side) □ 20 female 1" male
6 1018 7940 Square drive (on two sides) □ 20 female 1/2" male
6 1017 7940 Square drive (on two sides) □ 20 female 3/4" male
ORDER NO. Description
6 1055 9200 Cover (for one side), mountable on both sides
ORDER NO. Description
9 2406 0260 Portable service unit with pressure regulator 3/4“
9 2406 0650 Portable service unit with protection housing and pressure regulator 3/4“
ORDER NO. Description
9 9902 0120 Multi oil for cleaning and protection
