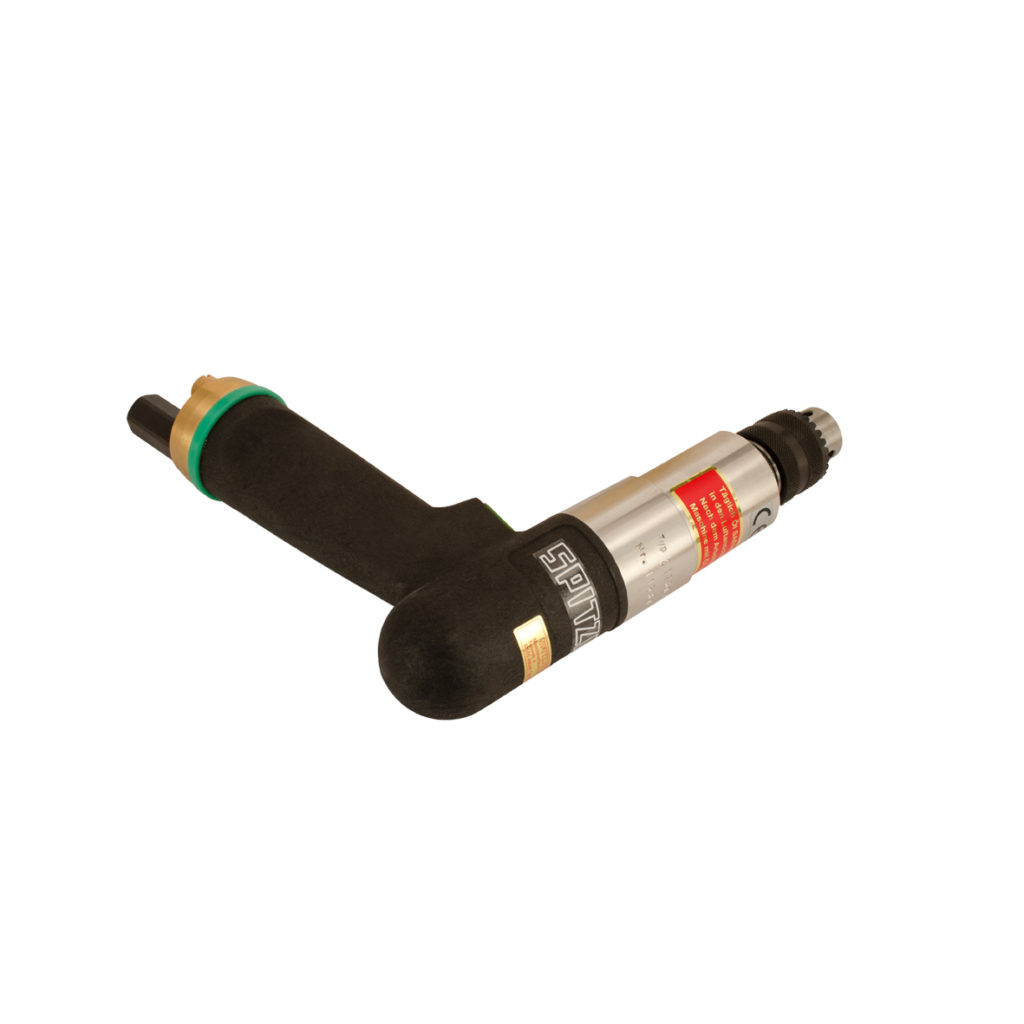

Pistol Drill

Order Number: 2 1261 0010
Handy and for universal use, drill chuck up to 13 mm drilling diameter, as well usable in explosive areas.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Drill chuck: max. dia. 13 mm
Drill chuck: max. dia. 13 mm
Underground mining
Underground mining
ATEX: IM2ExhIMbT6
ATEX: IM2ExhIMbT6

Technical Data

ORDER NO. 2 1261 0010
ATEX Specification IM2ExhIMbT6
Energy source Pneumatic
Operating pressure 6 bar
Drill chuck max. dia. 13.00 mm
Drilling capacity dia. in steel 13.00 mm
Speed (free) 850 rpm
Power 0.50 kW
Air consumption 0.60 m³/min
Length with drill chuck 245.00 mm
Connection R1/4" female
Noise level LpA 84.0 dB(A)
Noise level LWA 95.0 dB(A)
Vibration level <2,5 m/s²
Weight 2.3 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories

ORDER NO. Description
9 2406 0260 Portable service unit with pressure regulator 3/4“
9 2406 0630 Portable service unit with protection housing and pressure regulator 1/2“
9 2406 0650 Portable service unit with protection housing and pressure regulator 3/4“
ORDER NO. Description
9 3610 0410 Pneumatic hose ID 13.00 mm, 2.5 m length, screw-on claw coupling
9 3610 0420 Pneumatic hose ID 16.00 mm, 2.5 m length, screw-on claw coupling
9 3610 0430 Pneumatic hose ID 19.00 mm, 2.5 m length, screw-on claw coupling
9 2102 0020 Claw coupling, metal sealing, 3/4” ID
ORDER NO. Description
9 9910 0090 Carrying case
9 9902 0120 Multi oil for cleaning and protection
