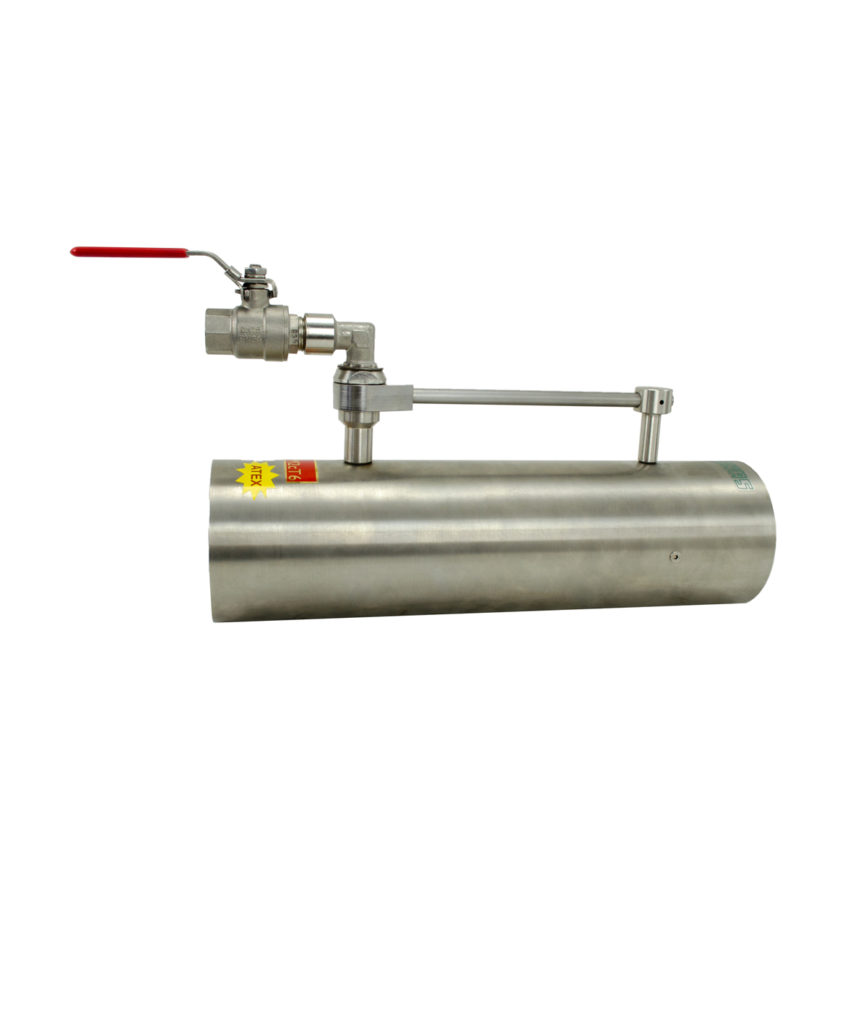

Air Mover

Order Number: 8 1636 0010
Due to the venturi principle, these robust pneumatic stainless steel fans are maintenance-free and free of wear and tear. The practical handle ensures mobile work at universal applications.
Earthing required.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 2-6 bar
Operating pressure: 2-6 bar
Nominal diameter: 129.00 mm
Nominal diameter: 129.00 mm
Underground mining
Underground mining
ATEX: IM2ExhIMbT6
ATEX: IM2ExhIMbT6

Technical Data

ORDER NO. 8 1636 0010
ATEX Specification IM2ExhIMbT6
Energy source Pneumatic
Operating pressure 2-6 bar
Nominal diameter 129.00 mm
Volume flow (unrestricted blowing) at 2 bar 11.6 m³/min
Volume flow (unrestricted blowing) at 3 bar 15.9 m³/min
Volume flow (unrestricted blowing) at 4 bar 18.6 m³/min
Volume flow (unrestricted blowing) at 5 bar 21.7 m³/min
Volume flow (unrestricted blowing) at 6 bar 27.4 m³/min
Volume flow (unrestricted sucking) at 2 bar 8.9 m³/min
Volume flow (unrestricted sucking) at 3 bar 12.8 m³/min
Volume flow (unrestricted sucking) at 4 bar 16.6 m³/min
Volume flow (unrestricted sucking) at 5 bar 20.5 m³/min
Volume flow (unrestricted sucking) at 6 bar 22.1 m³/min
Air consumption (at 2-6 bar) 1.7-2.4 m³/min
Length 425.00 mm
Material of housing Stainless steel
Connection G1/2"female
Noise level LpA 101.1 dB(A)
Weight 5.60 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

ORDER NO. Description
9 3707 0020 Earthing cable complete
