Axial Grinder

Order Number: 1 1495 0010
The ideal pneumatic axial grinder at speeds up to 12,000 rpm, with high removal performance.

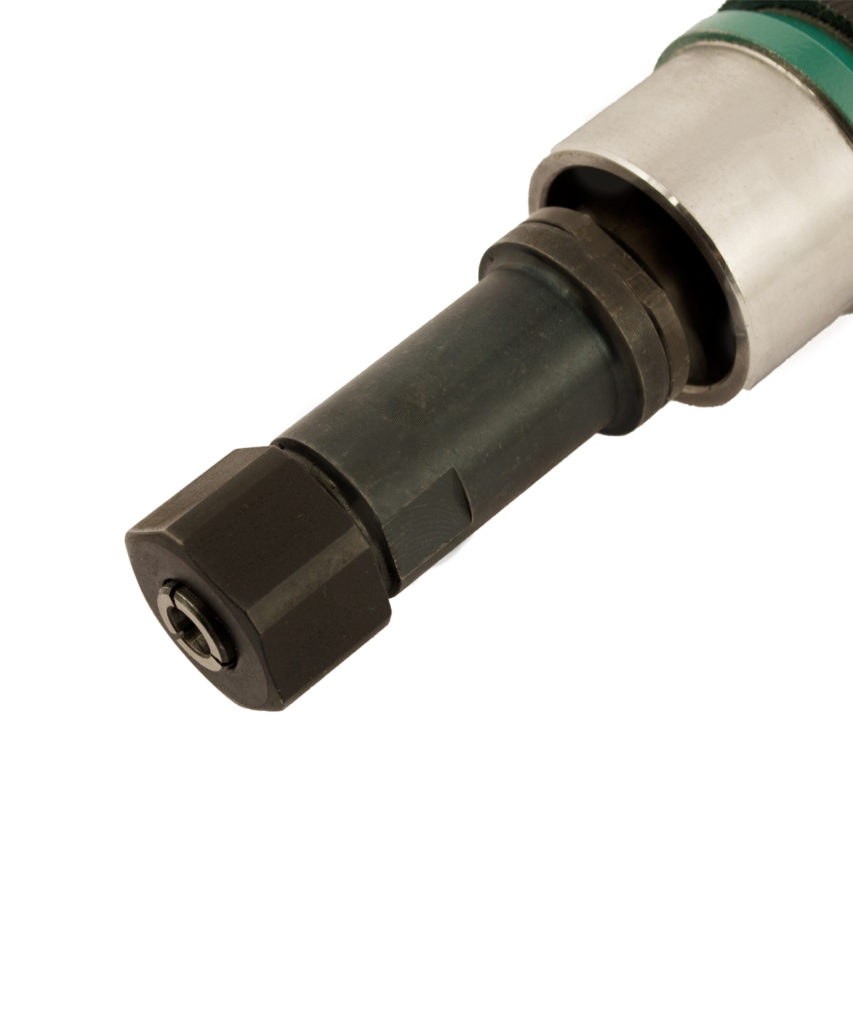

Tool holder for collet dia. 6 mm.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Actuation: Twist throttle
Actuation: Twist throttle
Speed (free): 12,000 rpm
Speed (free): 12,000 rpm
Tool holder: collet dia. 6 mm
Tool holder: collet dia. 6 mm

Technical Data

ORDER NO. 1 1495 0010
Energy source Pneumatic
Operating pressure 6 bar
Valve type Twist throttle
Tool holder for collet dia. 6 mm
Air consumption 1.70 m³/min
Power 1.70 kW
Speed (free) 12,000 rpm
Length 625.00 mm
Connection R1/2"female
Noise level LpA 86.3 dB(A)
Vibration level 3.2 m/s²
Weight 3.5 kg
Fields of application / branch Metal industry and steel construction; Plant and mechanical construction

Accessories

ORDER NO. Description
9 2406 0260 Service unit (hand-held) with pressure regulator R 3/4" and claw coupling
9 2406 0630 Service unit with protection housing R 1/2" male
9 3610 0410 Pneumatic hose ID 13 mm, 2.5 m length, compl. with claw coupling screwable
9 3610 0420 Pneumatic hose ID 15 mm, 2.5 m length, compl. with claw coupling screwable
9 2101 0010 Claw coupling, metal sealing, R 1/2" male
9 2102 0020 Claw coupling, metal sealing, R 1/2" female
