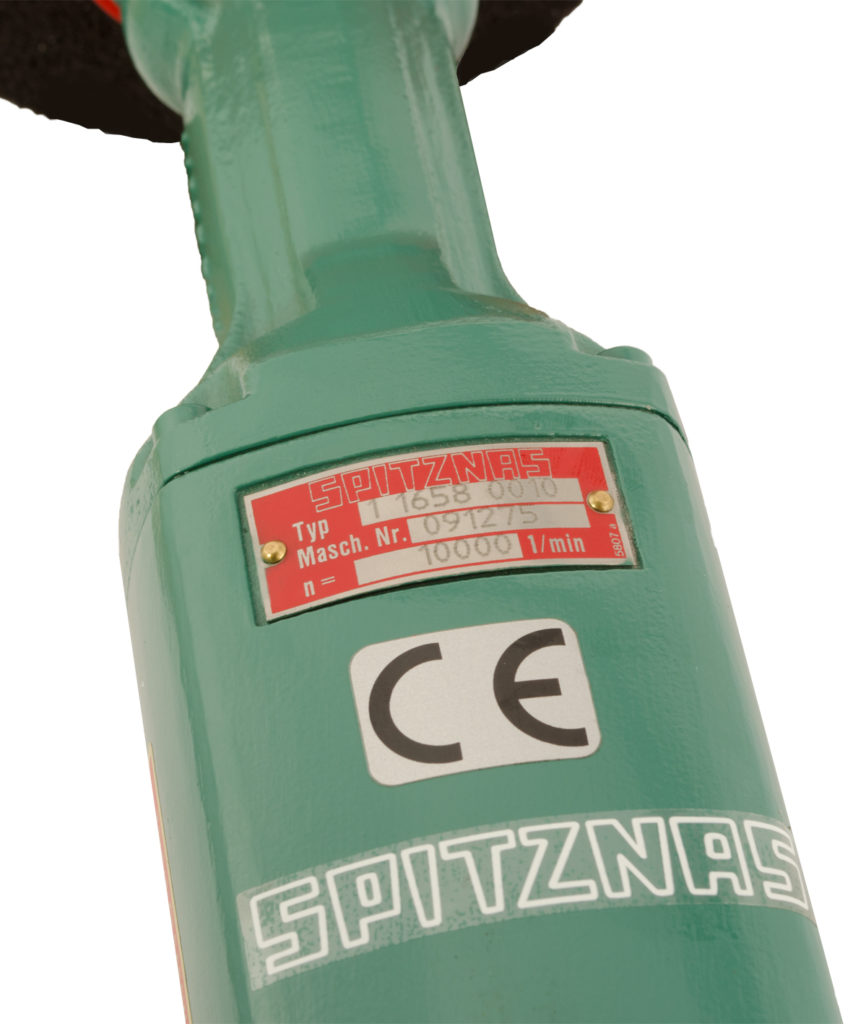

Axial Grinder

Order Number: 1 1658 0010
One of our strongest pneumatic axial grinder for maximum removal performance.
This machine has a tool holder for straight ginding wheels with protection hood for max. 150 mm diameter.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Actuation: Twist throttle
Actuation: Twist throttle
Speed (free): 10,190 rpm
Speed (free): 10,190 rpm
Tool holder: for straight grinding wheels with protection hood, dia. max. 150 mm
Tool holder: for straight grinding wheels with protection hood, dia. max. 150 mm

Technical Data

ORDER NO. 1 1658 0010
Energy source Pneumatic
Operating pressure 6 bar
Valve type Twist throttle
Tool holder for for straight grinding wheels with protection hood, dia. max. 150 mm
Air consumption 2.20 m³/min
Power 2.00 kW
Speed (free) 10,190 rpm
Length 554.00 mm
Noise level LpA 83.0 dB(A)
Vibration level 3.2 m/s²
Weight 5.3 kg
Fields of application / branch Metal industry and steel construction; Plant and mechanical construction

Accessories

On request.
Sense of rotation is anti- clockwise, viewed from the front to the spindle.
Only use consumables approved for the maximum speed.
ORDER NO. Description
9 2406 0260 Service unit (hand-held) with pressure regulator R 3/4" and claw coupling
9 2406 0630 Service unit with protection housing R 1/2" male
9 3610 0410 Pneumatic hose ID 13 mm, 2.5 m length, compl. with claw coupling screwable
9 3610 0420 Pneumatic hose ID 15 mm, 2.5 m length, compl. with claw coupling screwable
9 2101 0010 Claw coupling, metal sealing, R 1/2" male
9 2102 0020 Claw coupling, metal sealing, R 1/2" female
