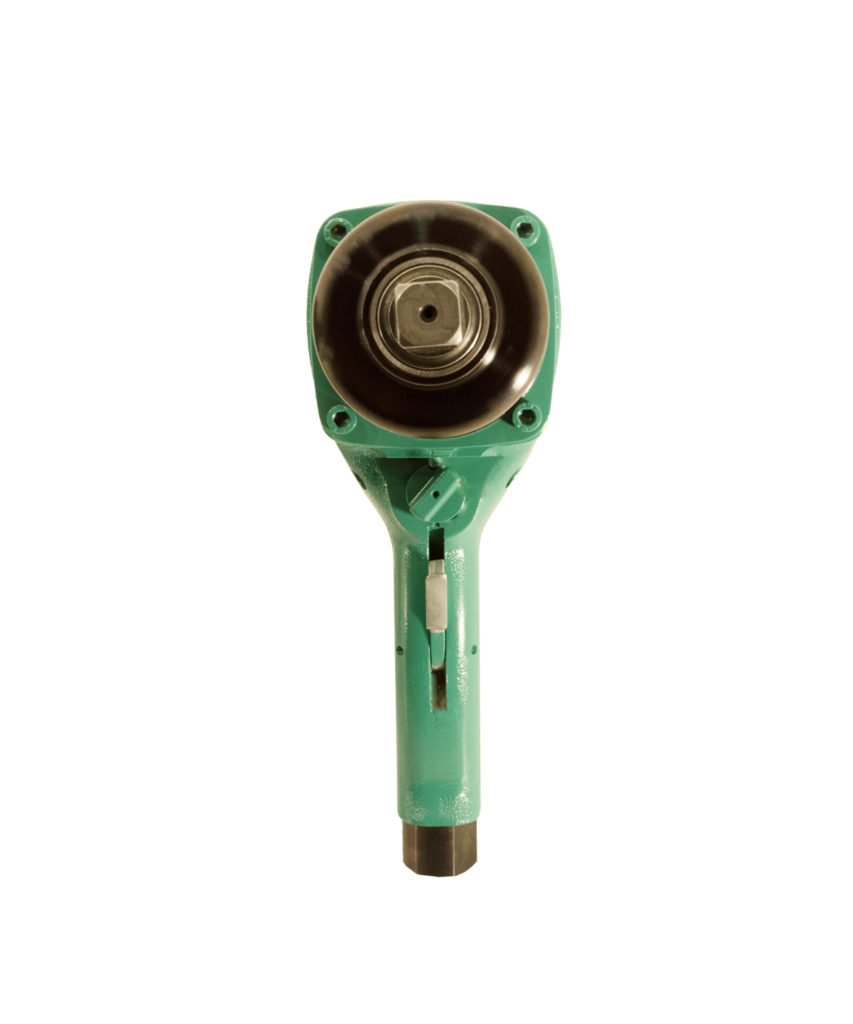

| ORDER NO. | 6 1316 0010 |
| ATEX Specification | IM2ExhIMbT6 |
| Energy source | Pneumatic |
| Operating pressure | 6 bar |
| Square drive | 1" |
| Screws up to | M30 mm |
| Air consumption | 1.40 m³/min |
| Max. torque | 880 Nm |
| Distance center to outer edge | 45.00 mm |
| Connection | R1/2"female |
| Noise level LpA | 96.0 dB(A) |
| Noise level LWA | 107.0 dB(A) |
| Vibration level | 4.5 m/s² |
| Weight | 6.5 kg |
| Fields of application / branch | Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction |
| ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1408 0580 | Hexagon socket, standard length | 1“ | 24 | 55.00 | 42.50 |
| 9 1408 0590 | Hexagon socket, standard length | 1“ | 27 | 55.00 | 46.00 |
| 9 1408 0600 | Hexagon socket, standard length | 1“ | 30 | 57.00 | 50.00 |
| 9 1408 0610 | Hexagon socket, standard length | 1“ | 32 | 57.00 | 52.00 |
| 9 1408 0620 | Hexagon socket, standard length | 1“ | 36 | 60.00 | 55.00 |
| 9 1408 0630 | Hexagon socket, standard length | 1“ | 41 | 64.00 | 64.00 |
| 9 1408 0640 | Hexagon socket, standard length | 1“ | 46 | 69.00 | 70.00 |
| 9 1408 0650 | Hexagon socket, standard length | 1“ | 50 | 72.00 | 73.00 |
| 9 1408 0660 | Hexagon socket, standard length | 1“ | 55 | 76.00 | 82.00 |
| 9 1408 0670 | Hexagon socket, standard length | 1“ | 60 | 82.00 | 86.00 |
| 9 1408 0680 | Hexagon socket, standard length | 1“ | 65 | 85.00 | 92.00 |
| ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1408 0690 | Hexagon socket, extra long | 1“ | 24 | 100.00 | 42.00 |
| 9 1408 0700 | Hexagon socket, extra long | 1“ | 27 | 100.00 | 46.00 |
| 9 1408 0710 | Hexagon socket, extra long | 1“ | 30 | 100.00 | 50.00 |
| 9 1408 0720 | Hexagon socket, extra long | 1“ | 32 | 100.00 | 51.00 |
| 9 1408 0730 | Hexagon socket, extra long | 1“ | 36 | 100.00 | 54.00 |
| 9 1408 0740 | Hexagon socket, extra long | 1“ | 41 | 100.00 | 63.00 |
| 9 1408 0750 | Hexagon socket, extra long | 1“ | 46 | 100.00 | 70.00 |
| 9 1408 0760 | Hexagon socket, extra long | 1“ | 50 | 110.00 | 75.00 |
| 9 1408 0770 | Hexagon socket, extra long | 1“ | 55 | 112.00 | 80.00 |
| 9 1408 0780 | Hexagon socket, extra long | 1“ | 60 | 114.00 | 85.00 |
| ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1424 0440 | Hexagon socket for allen head screws | 1“ | 17 | 75.00 | 54.00 |
| 9 1424 0450 | Hexagon socket for allen head screws | 1“ | 19 | 75.00 | 54.00 |
| 9 1424 0460 | Hexagon socket for allen head screws | 1“ | 22 | 75.00 | 54.00 |
| 9 1424 0470 | Hexagon socket for allen head screws | 1“ | 24 | 75.00 | 54.00 |
| ORDER NO. | Description | Tool square drive [inch] | Output square drive [inch] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1420 0140 | Extension | 1“ | 1“ | 175.00 | 54.00 |
| 9 1420 0150 | Extension | 1“ | 1“ | 250.00 | 54.00 |
| 9 1420 0160 | Extension | 1“ | 1“ | 330.00 | 54.00 |
| ORDER NO. | Description | Tool square drive [inch] | Output square drive [inch] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1422 0090 | Universal joint | 1“ | 1“ | 100.00 | 54.00 |
| ORDER NO. | Description |
|---|---|
| 9 2406 0260 | Portable service unit with pressure regulator 3/4“ |
| 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4“ |
| ORDER NO. | Description |
|---|---|
| 9 3610 0410 | Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp |
| 9 3610 0420 | Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp |
| 9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp |
| ORDER NO. | Description |
|---|---|
| 9 9902 0120 | Multi oil for cleaning and protection |
| More accessories on request. |
