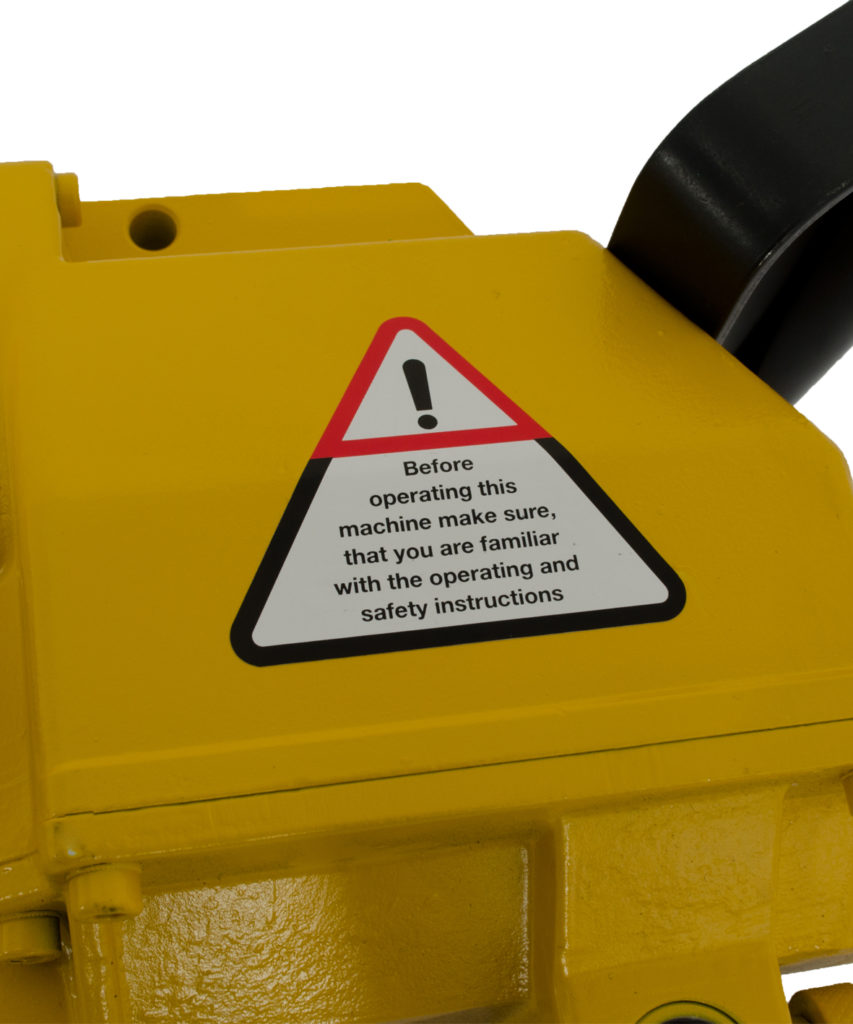

Reciprocating Saw

Order Number: 5 1220 0010
Our hydraulic reciprocating saw with powerful drive, increased cutting speed and twist throttle.
Energy source: Hydraulic
Energy source: Hydraulic
Operating pressure: 90-140 bar
Operating pressure: 90-140 bar
Valve type: Twist throttle
Valve type: Twist throttle
Underwater operation
Underwater operation
ATEX: II2GExhIIBT5Gb
ATEX: II2GExhIIBT5Gb

Technical Data

ORDER NO. 5 1220 0010
ATEX Specification II2GExhIIBT5Gb
Energy source Hydraulic
Operating pressure 90-140 bar
Volume flow 10-50 l/min
Actuation Twist throttle
Leistung 2.8 Power
Stroke (free) 300 rpm
Stroke 60,00 mm
Connection M18x1.5 mm
Hydraulic hose connection Flat-Star A250-OM/OF-1/2”BSP
Hydraulic medium Hydraulic oil
Hydraulic circuit type open circuit
Oil filtration class ISO-level of purity 20/18/13
Temperature of oil -34 up to +82 °C
Viscosity of oil >13 centistokes
Noise level LpA <70.0 dB(A)
Vibration level <2.5 m/s²
Weight 10.5 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work

Accessories

ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2501 0590 4 300.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0700 4 530.00 2.00 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0050 6 200.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0120 6 300.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0190 6 400.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0230 6 500.00 2.00 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0470 6 600.00 2.00 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0310 6 770.00 2.00 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0630 8 200.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0760 8 300.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0660 8 400.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0770 8 500.00 2.00 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0710 8 600.00 2.00 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0440 12 200.00 1.50 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0130 12 300.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0200 12 400.00 1.50 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0450 12 500.00 2.00 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0670 12 530.00 2.00 25.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0720 12 770.00 2.00 28.00 Standard Kunststoff, Hartfaserplatten, Guss, Stahl (Vollmaterial), NE-Metall
9 2501 0690 12 940.00 2.00 28.00 Standard Plastic, asbestos cement, aluminium (solid material)
9 2501 0020 14 150.00 1.50 25.00 Standard Buntmetall, rostfreier Stahl, Hochfester Stahl (<600 N/mm²)
9 2501 0060 14 200.00 1.50 25.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0070 14 250.00 1.50 25.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0140 14 300.00 1.50 25.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0210 14 400.00 1.50 25.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0240 14 500.00 2.00 28.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0460 14 600.00 2.00 28.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0300 14 770.00 2.00 28.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0640 16 200.00 1.50 25.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0610 16 300.00 1.50 25.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
9 2501 0620 16 400.00 1.50 25.00 Standard Non-ferrous metal, rust-resistant steel, high stress steel (<600 N/mm²)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2501 1010 6 200.00 2.25 45.00 High Plastic, cast iron
9 2501 0900 6 300.00 2.25 45.00 High Plastic, cast iron
9 2501 0910 6 400.00 2.25 45.00 High Plastic, cast iron
9 2501 0920 6 500.00 2.25 45.00 High Plastic, cast iron
9 2501 0930 6 600.00 2.25 45.00 High Plastic, cast iron
9 2501 0940 6 700.00 2.25 45.00 High Plastic, cast iron
9 2501 0950 6 770.00 2.25 45.00 High Plastic, cast iron
9 2501 1110 14 200.00 2.25 45.00 High Cast iron, steel (solid material)
9 2501 1120 14 300.00 2.25 45.00 High Cast iron, steel (solid material)
9 2501 0960 14 400.00 2.25 45.00 High Cast iron, steel (solid material)
9 2501 0890 14 500.00 2.25 45.00 High Cast iron, steel (solid material)
9 2501 0970 14 600,00 2.25 45.00 High Cast iron, steel (solid material)
9 2501 1130 14 700.00 2.25 45.00 High Cast iron, steel (solid material)
9 2501 1140 14 770.00 2.25 45.00 High Cast iron, steel (solid material)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2501 0740 6 770.00 2.00 28.00 High Plastic, hardboard, cast iron, steel (solid material), non-ferrous metal, stainless steel, high stress steel (<600 N/mm²)
9 2501 0680 12 530.00 2.00 28.00 High Plastic, hardboard, cast iron, steel (solid material), non-ferrous metal, stainless steel, high stress steel (<600 N/mm²)
9 2501 0730 12 770.00 2.00 28.00 High Plastic, hardboard, cast iron, steel (solid material), non-ferrous metal, stainless steel, high stress steel (<600 N/mm²)
9 2501 0320 16 150.00 1.50 25.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0330 16 200.00 1.50 25.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0340 16 250.00 1.50 25.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0350 16 300.00 1.50 25.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0600 16 350.00 1.50 25.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0360 16 400.00 1.50 25.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0370 16 500.00 2.00 28.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0550 16 600.00 2.00 28.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0380 16 770.00 2.00 28.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
9 2501 0750 16 940.00 2.00 28.00 High Non-ferrous metal, stainless steel, rust-resistance steel, high stree steel (<600 N/mm²)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2509 0010 8 470.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0020 8 570.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0030 8 670.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0040 8 770.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0160 6-8 470.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0170 6-8 570.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0180 6-8 670.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0190 6-8 770.00 2.00 28.00 Standard Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0310 14 470.00 2.00 28.00 Standard Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
9 2509 0320 14 570.00 2.00 28.00 Standard Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
9 2509 0330 14 670.00 2.00 28.00 Standard Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
9 2509 0340 14 770.00 2.00 28.00 Standard Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2509 0510 8 470.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0520 8 570.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0530 8 670.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0540 8 770.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0660 6-8 470.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0670 6-8 570.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0680 6-10 670.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0690 6-8 770.00 2.00 28.00 High Plastic, aluminium (solid material), cast iron, steel (solid material), non-ferrous metal (non-presious), non-ferrous metal (precious), stainless steel, rust-resistant steel
9 2509 0810 14 470.00 2.00 28.00 High Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
9 2509 0820 14 570.00 2.00 28.00 High Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
9 2509 0830 14 670.00 2.00 28.00 High Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
9 2509 0840 14 770.00 2.00 28.00 High Aluminium (thin wall thickness), cast iron, steel (solid material), non-ferrous metal (non-presious, thin wall thickness), non-ferrous metal (precious, thin wall thickness), stainless steel, rust-resistant steel
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2504 0710 3-4 500.00 2.00 28.00 Highest Plastic, hardboard, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), non-ferrous metal (precious), stainless steel, rust-resistant metal, high stress steel (<600 N/mm²)
9 2504 0720 3-4 600.00 2.00 28.00 Highest Plastic, hardboard, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), non-ferrous metal (precious), stainless steel, rust-resistant metal, high stress steel (<600 N/mm²)
9 2504 0730 3-4 770.00 2.00 28.00 Highest Plastic, hardboard, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), non-ferrous metal (precious), stainless steel, rust-resistant metal, high stress steel (<600 N/mm²)
9 2504 0560 4-7 500.00 2.00 28.00 Highest Plastic, hardboard, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), non-ferrous metal (precious), stainless steel, rust-resistant metal, high stress steel (<600 N/mm²)
9 2504 0570 4-7 600.00 2.00 28.00 Highest Plastic, hardboard, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), non-ferrous metal (precious), stainless steel, rust-resistant metal, high stress steel (<600 N/mm²)
9 2504 0580 4-7 770.00 2.00 28.00 Highest Plastic, hardboard, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), non-ferrous metal (precious), stainless steel, rust-resistant metal, high stress steel (<600 N/mm²)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Höeight [mm] Quality class Anpplication
9 2504 0460 3 630.00 1.60 54.00 Highest Plastic, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), stainless steel, rust-resistant steel, high stress steel (<600 N/mm²)
9 2504 0480 3 500.00 1.60 54.00 Highest Plastic, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), stainless steel, rust-resistant steel, high stress steel (<600 N/mm²)
9 2504 0470 3 770.00 1.60 54.00 Highest Plastic, aluminium (solid material), steel (solid material), reinforcing bar, non-ferrous metal (non-precious), stainless steel, rust-resistant steel, high stress steel (<600 N/mm²)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2504 0610 4 300.00 1.80 50.00 Highest GRP-pipe, asbestos cement, concrete reinforced, brick, cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0620 4 400.00 1.80 50.00 Highest GRP-pipe, asbestos cement, concrete reinforced, brick, cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0630 4 500.00 1.80 50.00 Highest GRP-pipe, asbestos cement, concrete reinforced, brick, cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0640 4 600.00 1.80 50.00 Highest GRP-pipe, asbestos cement, concrete reinforced, brick, cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0650 4 770.00 1.80 50.00 Highest GRP-pipe, asbestos cement, concrete reinforced, brick, cast iron, ductile iron (cement coated iron), cast iron (tar coated)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2504 0350 - 300.00 2.80 25.00 Standard Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0430 - 400.00 2.00 25.00 Standard Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0420 - 500.00 2.50 32.00 Standard Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0440 - 600.00 2.50 32.00 Standard Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0450 - 700.00 2.50 32.00 Standard Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Teeth per inch Length [mm] Width [mm] Height [mm] Quality class Application
9 2504 0500 - 300.00 2.00 28.00 High Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0510 - 400.00 2.00 28.00 High Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0520 - 500.00 2.00 28.00 High Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0530 - 600.00 2.00 28.00 High Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0540 - 700.00 2.00 28.00 High Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
9 2504 0550 - 770.00 2.00 28.00 High Cast iron, ductile iron (cement coated iron), cast iron (tar coated)
Needed saw blade length = max. cross-section+130 mm
ORDER NO. Description For pipe dia max. [mm] Min. saw blade length [mm]
5 1202 9960 Clamp for pipes 325.00 Pipe dia. + 130,00
5 1202 8940 Clamp for pipes 530.00 Pipe dia. + 130,00
ORDER NO. Description For pipes up to dia. [mm] For saw blade width up to [mm] Min. saw blade length [mm]
5 1207 9970 Bow guide 325.00 2.00 500.00
5 1207 8910 Bow guide 530.00 2.00 700.00
5 1212 9970 Bow guide 600.00 2.00 900.00
ORDER NO. Description For pipes up to dia. [mm] For saw blade width up to [mm] Min. saw blade length [mm]
5 1207 9930 Clamp with bow guide 325.00 2.00 500.00
5 1207 8930 Clamp with bow guide 530.00 2.00 700.00
ORDER NO. Description Length [mm]
5 1201 9010 Extension link chain 500.00
5 1201 9030 Extension link chain 1,000.00
5 1201 9020 Extension link chain 2,000.00
ORDER NO. Description For pipes up to dia. [mm]
5 1202 9970 Quick spanner for clamp 325.00
5 1207 8140 Tightener 325.00
ORDER NO. Description For pipes up to dia. [mm]
5 1208 9940 Clamp with automatic feed with pneumatic cylinder 530.00
5 1208 9990 Clamp with automatic feed with gas pressure spring 530.00
ORDER NO. Description Max. profile width [mm]
5 1202 8970 Clamp for profiles 290.00
5 1207 9940 Clamp for profiles 340.00
ORDER NO. Description For pipes up to dia. [mm]
5 1207 9910 Clamp for pipes 150.00
5 1212 9910 Clamp for pipes -reinforced type- 250.00
ORDER NO. Description
5 1208 9910 Double pivot clamping device
5 1214 9000 Double-screw clamp
ORDER NO. Description
5 1213 9500 Magnetic clamp for mounting on flat surfaces
ORDER NO. Description
5 1213 9550 Device with gas pressure spring for magnetic clamp type 5 1213 9500
ORDER NO. Description
2 1330 8500 Clamp for pipes dia. 150 mm up to 500 mm for magnetic clamp
5 1201 9030* Extension link chain for pipes up to dia. 800 mm
5 1201 9020* Extension link chain for pipes up to dia. 1,100 mm
*2 pieces are needed for one clamp
ORDER NO. Description
5 1212 9200 Adapter for off-center cutting
ORDER NO. Description
2 1317 9010 Hydraulic hose set
ORDER NO. Description For type
2 2406 9900 Safety block (inlet pressure up to 350 bar, max. 50 l/min) 5 1220, 5 1223
5 1212 9000 Carrying case 5 1220
9 9902 0120 Multi oil for cleaning and protection
More accessories on request.

Product Video

These videos are hosted on Youtube. By clicking the 'Play' button, you accept YouTube's data protection guidelines.
