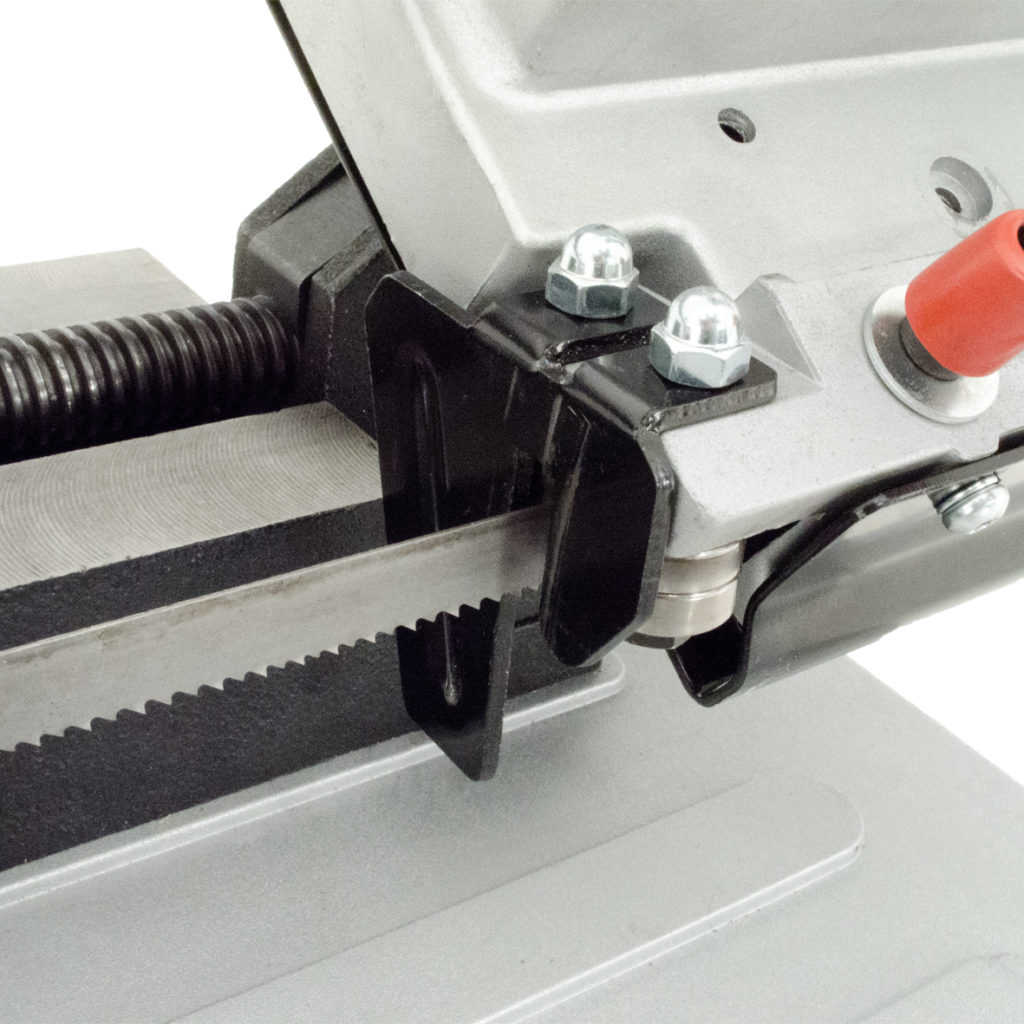

Band Saw

Order Number: 5 6093 0010
The ideal tool for all stationary and mobile cutting work as well as in ATEX Safety Class areas.
The type is including the clamp.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Cutting capacity: 3
Cutting capacity: 3"x6" (80 mm x 150 mm)
ATEX: II2GExhIIBT6Gb
ATEX: II2GExhIIBT6Gb

Technical Data

ORDER NO. 5 6093 0010
ATEX Specification II2GExhIIBT6Gb
Energy source Pneumatic
Operating pressure 6 bar
Air consumption 0.55 m³/min
Power 0.50 kW
Free surface speed 105 m/min
Cutting capacity max. dia. 80.00 mm
Cutting capacity max. □ 80x150 (3"x6") mm
Total length 640.00 mm
Height incl. motor 390.00 mm
Length 315.00 mm
Connection R1/4"innen
Noise level LpA 87.0 dB(A)
Noise level LWA 96.0 dB(A)
Vibration level <2.5 m/s²
Weight 18.7 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

ORDER NO. Teeth per inch
9 2506 0650 8/12
9 2506 0660 10/14
9 2506 0670 14
9 2506 0680 18
ORDER NO. For cutting
5 6093 9500 Pipes, profiles
ORDER No. Description
9 2406 0260 Portable service unit with pressure regulator 3/4“
9 2406 0650 Portable service unit with protection housing and pressure regulator 3/4“
9 9902 0120 Multi oil for cleaning and protection
