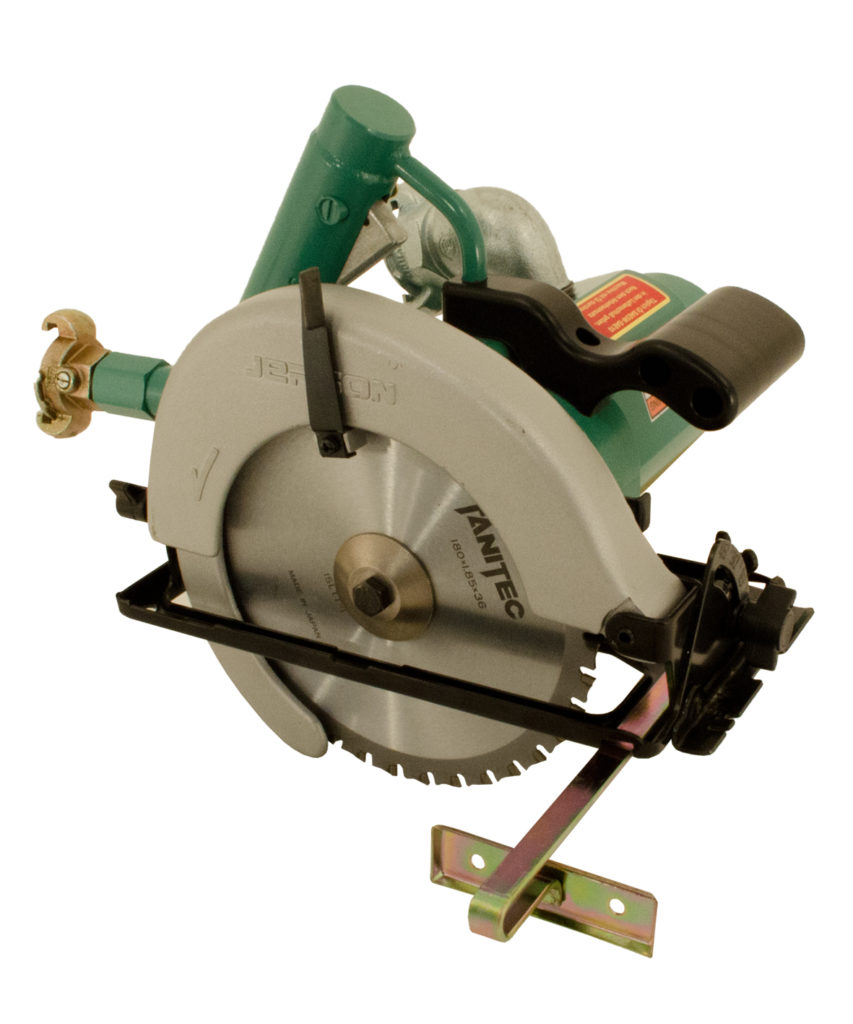

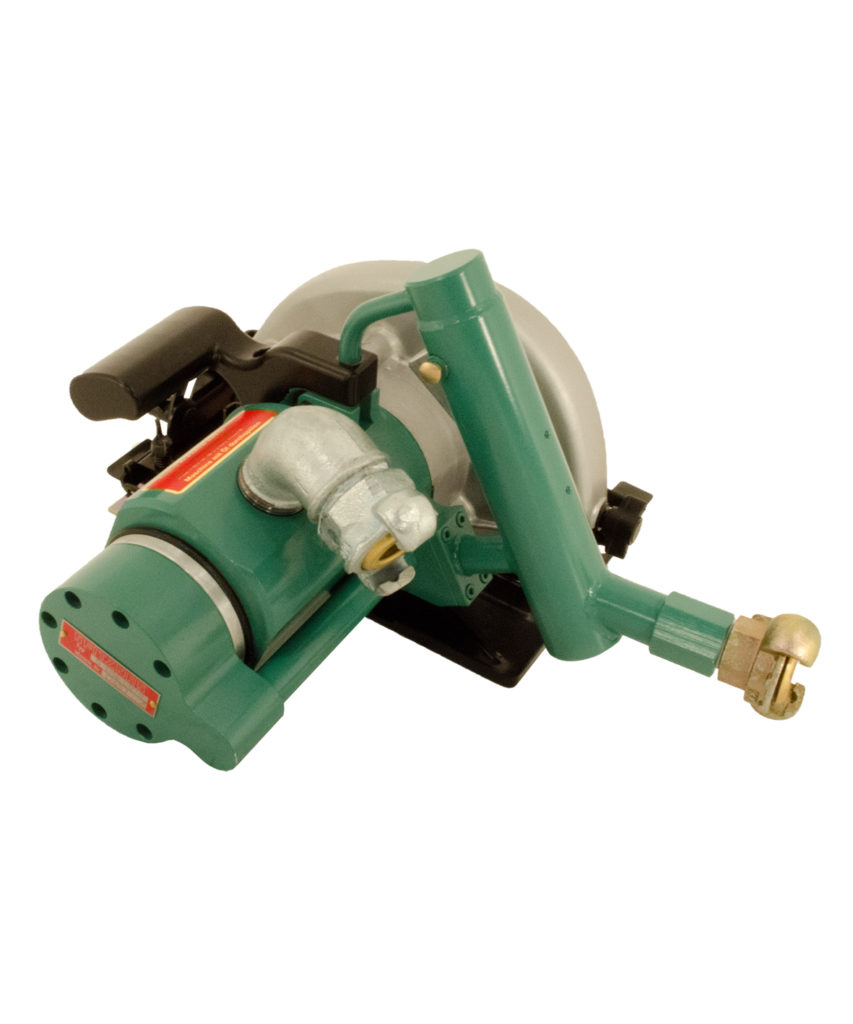

Circular Saw

Order Number: 5 1116 0070
As standard, our circular saw has a device for parallel cuts and mitre cuts up to 45°.
This type includes an exhaust line adapter.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 6 bar
Operating pressure: 6 bar
Cutting depth at 90°/45°: 64 mm/40 mm
Cutting depth at 90°/45°: 64 mm/40 mm
Underwater operation
Underwater operation
ATEX: II2GExhIIBT5Gb

Technical Data

ORDER NO. 5 1116 0070
ATEX Specification II2GExhIIBT5Gb
Energy source Pneumatic
Operating pressure 6 bar
Air consumption 1.5 m³/min
Power 1.30 kW
Connection Inlet/Outlet
Max. saw blade dia. 190.00 mm
Speed (free) 3.200 rpm
Cutting depth at 90°/45° 65/40 mm
Center dia. for saw blade 16/19/20/30 mm
Air connection (inlet) R1/2"female
Air connection (outlet) R1"female
Noise level LpA 95.4 dB(A)
Noise level LWA 104.4 dB(A)
Vibration level <2.5 m/s²
Weight 6.5 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work

Accessories

ORDER NO. Diameter Center dia. Number of teeth Cutting width Material thickness < 5 mm Material thickness 5-10 mm Material thickness > 10 mm Material
9 2503 0120 180.00 30.00 36 1.85 x x x Plastic, plexiglass, aluminium, steel, stainless steel, copper
9 2503 0230 180.00 20.00 48 2.00 x x x Plastic, plexiglass, aluminium, steel, stainless steel, copper
9 2503 0240 180.00 20.00 48 1.60 x x Plastic, plexiglass, aluminium, steel, stainless steel, copper
9 2503 0110 230.00 25.40 48 2.00 x x Steel, stainless steel, copper
9 2503 0160 230.00 25.40 60 2.00 x x Plastic, plexiglass, aluminium, steel, stainless steel, copper
9 2503 0170 230.00 25.40 68 2.00 x Plastic, plexiglass, aluminium, steel, stainless steel, copper
9 2503 0180 230.00 25.40 84 2.00 x x Plastic, plexiglass, aluminium, steel, stainless steel, copper
9 2503 0190* 230.00 25.40 48 2.00 x x Steel, stainless steel, copper
9 2503 0140 320.00 25.40 84 2.20 x x x Plastic, plexiglass, aluminium, steel, stainless steel, copper
9 2503 0150* 320.00 25.40 84 2.00 x x x Plastic, plexiglass, aluminium, steel, stainless steel, copper
*coated (for longer lifetime)
ORDER NO. Description
5 1116 9300 Water connection assembly
9 2406 0260 Service unit, portable, pressure regulator 3/4“
9 2406 0650 Service unit, portable, protection housing, pressure regulator 3/4“
9 9902 0120 Multi oil for cleaning and protection
