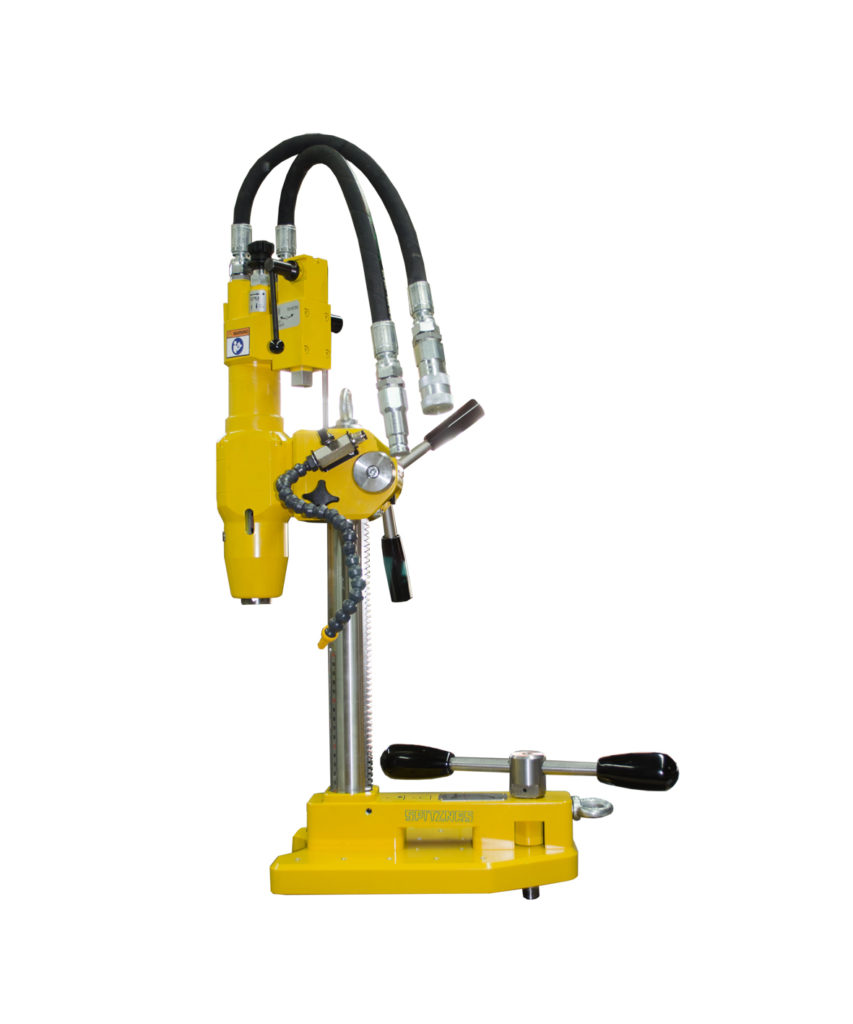

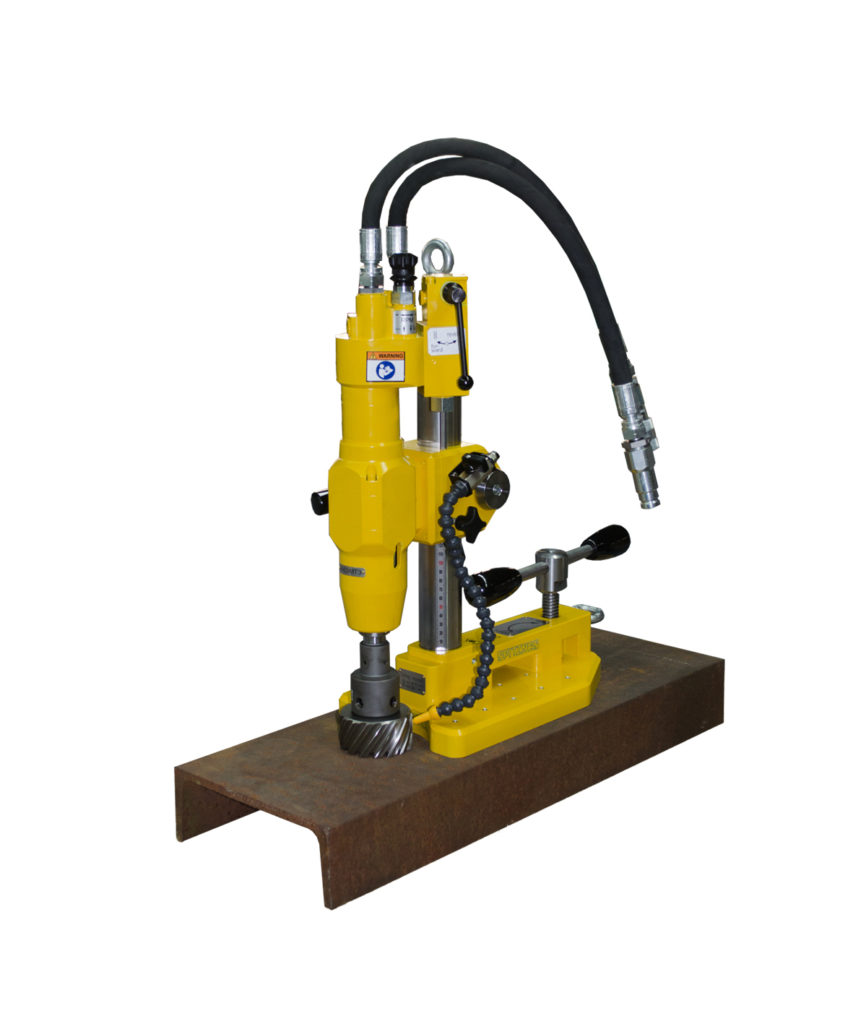

Magnetic Core Drill

Order Number: 2 1345 0020
The powerful hydraulic magnetic core drill for drilling up to dia. 100 mm as well for underwater operation, with increased magnetic force.
Energy source: Pneumatic
Energy source: Pneumatic
Operating pressure: 140-180 bar
Operating pressure: 140-180 bar
Drill bits: up to dia. 100 mm
Drill bits: up to dia. 100 mm
Magnetic force: 1,500 kg
Magnetic force: 1,500 kg
Underwater operation
Underwater operation
ATEX: II2GExhIIT5Gb
ATEX: II2GExhIIT5Gb

Technical Data

ORDER NO. 2 1345 0020
ATEX Specification II2GExhIIT5Gb
Energy source Hydraulic
Operating pressure 140-180 bar
Direction of rotation left/right
Max. drill bit dia. 12.00-100.00 mm
Max. spiral drill dia. 31.75 mm
Max. tap dia. M30 mm
Max. reaming dia. 31.00 mm
Max. plummet dia. 50.00 mm
Stroke 300.00 mm
Tool holder MT3
Speed (free) 40-250 rpm
Magnetic force 1,500 kg
Power 2.50 kW
Volume flow 20-23 l/min
Dimensions 576x198x547-724 mm
Dimensions of magnetic foot 326x190 mm
Connection SAE Port No. 8 (3/4x16UNF-2B) mm
Water cooling connection R1/4"female
Hydraulic hose connection Flat-Star A250-OM/OF-1/2”BSP
Hydraulic medium Hydraulic oil
Hydraulic circuit type open circuit
Oil filtration class ISO-level of purity 20/18/13
Temperature of oil -34 up to +82 °C
Viscosity of oil >13 centistokes
Noise level LpA 79.8 dB(A)
Noise level LWA 91.0 dB(A)
Vibration level <2.5 m/s²
Weight 27.5 kg
Fields of application / branch Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work

Accessories

ORDER NO. Dia. [mm] Cutting depth [mm] WELDON [mm]
9 2528 0010 12.00 30.00 19.00
9 2528 0020 13.00 30.00 19.00
9 2528 0030 14.00 30.00 19.00
9 2528 0040 15.00 30.00 19.00
9 2528 0050 16.00 30.00 19.00
9 2528 0060 17.00 30.00 19.00
9 2528 0080 18.00 30.00 19.00
9 2528 0090 19.00 30.00 19.00
9 2528 0110 20.00 30.00 19.00
9 2528 0120 21.00 30.00 19.00
9 2528 0130 22.00 30.00 19.00
9 2528 0140 23.00 30.00 19.00
9 2528 0150 24.00 30.00 19.00
9 2528 0160 25.00 30.00 19.00
9 2528 0170 26.00 30.00 19.00
9 2528 0180 27.00 30.00 19.00
9 2528 0190 28.00 30.00 19.00
9 2528 0200 29.00 30.00 19.00
9 2528 0210 30.00 30.00 19.00
9 2528 0220 31.00 30.00 19.00
9 2528 0230 32.00 30.00 19.00
9 2528 0240 33.00 30.00 19.00
9 2528 0250 34.00 30.00 19.00
9 2528 0260 35.00 30.00 19.00
9 2528 0270 36.00 30.00 19.00
9 2528 0280 37.00 30.00 19.00
9 2528 0290 38.00 30.00 19.00
9 2528 0300 39.00 30.00 19.00
9 2528 0310 40.00 30.00 19.00
9 2528 0320 41.00 30.00 19.00
9 2528 0330 42.00 30.00 19.00
9 2528 0340 43.00 30.00 19.00
9 2528 0350 44.00 30.00 19.00
9 2528 0360 45.00 30.00 19.00
9 2528 0370 46.00 30.00 19.00
9 2528 0380 47.00 30.00 19.00
9 2528 0390 48,00 30.00 19.00
9 2528 0400 49.00 30.00 19.00
9 2528 0410 50.00 30.00 19.00
9 2528 0450 51.00 30.00 19.00
9 2528 0430 52.00 30.00 19.00
9 2528 0440 53.00 30.00 19.00
9 2528 0450 54.00 30.00 19.00
9 2528 0460 55.00 30.00 19.00
9 2528 0470 56.00 30.00 19.00
9 2528 0480 57.00 30.00 19.00
9 2528 0490 58.00 30.00 19.00
9 2528 0500 59.00 30.00 19.00
9 2528 0510 60.00 30.00 19.00
9 2528 0520 61.00 30.00 32.00
9 2528 0530 62.00 30.00 32.00
9 2528 0540 63.00 30.00 32.00
9 2528 0550 64.00 30.00 32.00
9 2528 0560 65.00 30.00 32.00
9 2528 0570 66.00 30.00 32.00
9 2528 0580 67.00 30.00 32.00
9 2528 0590 68.00 30.00 32.00
9 2528 0600 69.00 30.00 32.00
9 2528 0610 70.00 30.00 32.00
9 2528 0620 71.00 30.00 32.00
9 2528 0630 72.00 30.00 32.00
9 2528 0640 73.00 30.00 32.00
9 2528 0650 74.00 30.00 32.00
9 2528 0660 75.00 30.00 32.00
9 2528 0670 76.00 30.00 32.00
9 2528 0680 77.00 30.00 32.00
9 2528 0690 78.00 30.00 32.00
9 2528 0700 79.00 30.00 32.00
9 2528 0710 80.00 30.00 32.00
9 2528 0720 81.00 30.00 32.00
9 2528 0730 82.00 30.00 32.00
9 2528 0740 83.00 30.00 32.00
9 2528 0750 84.00 30.00 32.00
9 2528 0760 85.00 30.00 32.00
9 2528 0770 86.00 30.00 32.00
9 2528 0780 87.00 30.00 32.00
9 2528 0790 88.00 30.00 32.00
9 2528 0800 89.00 30.00 32.00
9 2528 0810 90.00 30.00 32.00
9 2528 0820 91.00 30.00 32.00
9 2528 0830 92.00 30.00 32.00
9 2528 0840 93.00 30.00 32.00
9 2528 0850 94.00 30.00 32.00
9 2528 0860 95.00 30.00 32.00
9 2528 0870 96.00 30.00 32.00
9 2528 0880 97.00 30.00 32.00
9 2528 0890 98.00 30.00 32.00
9 2528 0900 99.00 30.00 32.00
9 2528 0910 100.00 30.00 32.00
More drill bits on request.
ORDER NO. Dia. [mm] Cutting depth [mm] WELDON [mm]
9 2529 0420 12.00 55.00 19.00
9 2529 0430 13.00 55.00 19.00
9 2529 0010 14.00 55.00 19.00
9 2529 0020 15.00 55.00 19.00
9 2529 0030 16.00 55.00 19.00
9 2529 0040 17.00 55.00 19.00
9 2529 0060 18.00 55.00 19.00
9 2529 0070 19.00 55.00 19.00
9 2529 0090 20.00 55.00 19.00
9 2529 0100 21.00 55.00 19.00
9 2529 0110 22.00 55.00 19.00
9 2529 0120 23.00 55.00 19.00
9 2529 0130 22.00 55.00 19.00
9 2529 0140 25.00 55.00 19.00
9 2529 0150 26.00 55.00 19.00
9 2529 0160 27.00 55.00 19.00
9 2529 0170 28.00 55.00 19.00
9 2529 0180 29.00 55.00 19.00
9 2529 0190 30.00 55.00 19.00
9 2529 0200 31.00 55.00 19.00
9 2529 0210 32.00 55.00 19.00
9 2529 0220 33.00 55.00 19.00
9 2529 0230 34.00 55.00 19.00
9 2529 0240 35.00 55.00 19.00
9 2529 0250 36.00 55.00 19.00
9 2529 0260 37.00 55.00 19.00
9 2529 0270 38.00 55.00 19.00
9 2529 0280 39.00 55.00 19.00
9 2529 0290 40.00 55.00 19.00
9 2529 0300 41.00 55.00 19.00
9 2529 0310 42.00 55.00 19.00
9 2529 0320 43.00 55.00 19.00
9 2529 0330 44.00 55.00 19.00
9 2529 0340 45.00 55.00 19.00
9 2529 0350 46.00 55.00 19.00
9 2529 0360 47.00 55.00 19.00
9 2529 0370 48.00 55.00 19.00
9 2529 0380 49.00 55.00 19.00
9 2529 0390 50.00 55.00 19.00
9 2529 0400 51.00 55.00 19.00
9 2529 0410 52.00 55.00 19.00
9 2529 0440 53.00 55.00 19.00
9 2529 0450 54.00 55.00 19.00
9 2529 0460 55.00 55.00 19.00
9 2529 0470 56.00 55.00 19.00
9 2529 0480 57.00 55.00 19.00
9 2529 0490 58.00 55.00 19.00
9 2529 0500 59.00 55.00 19.00
9 2529 0510 60.00 55.00 19.00
9 2529 0520 61.00 55.00 32.00
9 2529 0530 62.00 55.00 32.00
9 2529 0540 63.00 55.00 32.00
9 2529 0550 64.00 55.00 32.00
9 2529 0560 65.00 55.00 32.00
9 2529 0570 66.00 55.00 32.00
9 2529 0580 67.00 55.00 32.00
9 2529 0590 68.00 55,00 32.00
9 2529 0600 69.00 55.00 32.00
9 2529 0610 70.00 55.00 32.00
9 2529 0620 71.00 55.00 32.00
9 2529 0630 72.00 55.00 32.00
9 2529 0640 73.00 55.00 32.00
9 2529 0650 74.00 55.00 32.00
9 2529 0660 75.00 55.00 32.00
9 2529 0670 76.00 55.00 32.00
9 2529 0680 77.00 55.00 32.00
9 2529 0690 78.00 55.00 32.00
9 2529 0700 79.00 55.00 32.00
9 2529 0710 80.00 55.00 32.00
9 2529 0720 81.00 55.00 32.00
9 2529 0730 82.00 55.00 32.00
9 2529 0740 83.00 55.00 32.00
9 2529 0750 84.00 55.00 32.00
9 2529 0760 85.00 55.00 32.00
9 2529 0770 86.00 55.00 32.00
9 2529 0780 87.00 55.00 32.00
9 2529 0790 88.00 55.00 32.00
9 2529 0800 89.00 55.00 32.00
9 2529 0810 90.00 55.00 32.00
9 2529 0820 91.00 55.00 32.00
9 2529 0830 92.00 55.00 32.00
9 2529 0840 93.00 55.00 32.00
9 2529 0850 94.00 55.00 32.00
9 2529 0860 95.00 55.00 32.00
9 2529 0870 96.00 55.00 32.00
9 2529 0880 97.00 55.00 32.00
9 2529 0890 98.00 55.00 32.00
9 2529 0900 99.00 55.00 32.00
9 2529 0910 100.00 55.00 32.00
More drill bits on request.
ORDER NO. Description
9 2517 0420 Ejector pin for WELDON 19 mm (short type)
9 2517 0440 Ejector pin for WELDON 32 mm (short type)
9 2517 0410 Ejector pin for WELDON 19 mm (long type)
9 2517 0460 Ejector pin for WELDON 32 mm (long type)
9 2517 0430 Drill bit extension 80 mm for WELDON 19 mm
9 2517 0450 Drill bit extension 80 mm for WELDON 32 mm
ORDER NO. Dia. [mm] Cutting deph [mm] Tool shank
9 2517 0510 10.00 87.00 MT1
9 2517 0520 11.00 94.00 MT1
9 2517 0530 12.00 101.00 MT1
9 2517 0540 13.00 101.00 MT1
9 2517 0550 14.00 108.00 MT1
9 2517 0560 15.00 114.00 MT2
9 2517 0570 16.00 120.00 MT2
9 2517 0580 17.00 125.00 MT2
9 2517 0590 18.00 130.00 MT2
9 2517 0600 19.00 135.00 MT2
9 2517 0610 20.00 140.00 MT2
9 2517 0620 21.00 145.00 MT2
9 2517 0630 22.00 150.00 MT2
9 2517 0640 23.00 155.00 MT2
9 2517 0650 24.00 160.00 MT3
9 2517 0660 25.00 160.00 MT3
9 2517 0670 26.00 165.00 MT3
9 2517 0680 27.00 170.00 MT3
9 2517 0690 28.00 170.00 MT3
9 2517 0700 29.00 175.00 MT3
9 2517 0710 30.00 175.00 MT3
9 2517 0720 31.00 180.00 MT3
9 2517 0730 31.75 185.00 MT3
More spiral drill bits on request.
ORDER NO. Dia. [mm] Cutting depth [mm] Tool shank
9 2517 0740 10.00 38.00 MT1
9 2517 0750 11.00 41.00 MT1
9 2517 0760 12.00 44.00 MT1
9 2517 0770 13.00 44.00 MT1
9 2517 0780 14.00 47.00 MT1
9 2517 0790 15.00 50.00 MK2
9 2517 0820 18.00 56.00 MT2
9 2517 0830 19.00 58.00 MT2
9 2517 0840 20.00 60.00 MT2
9 2517 0850 21.00 62.00 MT2
9 2517 0860 22.00 64.00 MT2
9 2517 0870 23.00 66.00 MT2
9 2517 0880 24.00 68.00 MT3
9 2517 0890 25.00 68.00 MT3
9 2517 0900 26.00 70.00 MT3
9 2517 0910 27.00 71.00 MT3
9 2517 0920 28.00 71.00 MT3
9 2517 0930 29.00 73.00 MT3
9 2517 0940 30.00 73.00 MT3
9 2517 0950 31.00 75.00 MT3
More reamers on request.
ORDER NO. Dia. [mm] Cutting depth [mm] Tool shank
9 2527 0510 20.00 100.00 1/2“male
9 2527 0520 25.00 100.00 1/2“male
9 2527 0530 30.00 100.00 1/2“male
9 2527 0540 40.00 100.00 1/2“male
9 2527 0550 50.00 100.00 1/2“male
9 2527 0560 60.00 100.00 1/2“male
9 2527 0570 72.00 100.00 1/2“male
9 2527 0580 82.00 100.00 1/2“male
9 2527 0590 92.00 100.00 1/2“male
9 2527 0600 102.00 100.00 1/2“male
9 2527 0610 20.00 150.00 1/2“male
9 2527 0620 25.00 150.00 1/2“male
9 2527 0630 30.00 150.00 1/2“male
9 2527 0640 40.00 150.00 1/2“male
9 2527 0650 50.00 150.00 1/2“male
9 2527 0660 60.00 150.00 1/2“male
9 2527 0670 72.00 150.00 1/2“male
9 2527 0680 82.00 150.00 1/2“male
9 2527 0690 92.00 150.00 1/2“male
9 2527 0700 102.00 150.00 1/2“male
More diamond drill bits on request.
ORDER NO. Description
2 1330 8500 Clamp for pipes up to dia. 150-500 mm
ORDER NO. Description
9 4902 0120 Retaining chain assembly
ORDER NO. Description
9 2917 0400 Magnetic drill chip collector
ORDER NO. Description
9 2902 0300 Industrial adapter, MT3/WELDON 19 mm
9 2902 0310 Industrial adapter, MT3/WELDON 32 mm
9 2902 0230 Adapter WELDON 19 mm/Drill chuck
9 2902 0200 Quick-release drill chuck for dia. 1,5 up to 13 mm (for cylindrical drill bits)
9 2911 0050 Quick-release drill chuck for dia. 1,5 up to 16 mm (for cylindrical drill bits)
9 2902 0400 Industrial adapter MT3/R 1/2“female with internal water cooling
9 2902 0320 Industrial adapter MT3/MT1
9 2902 0330 Industrial adapter MT3/MT2
9 2902 0340 Industrial adapter MT2/MT1
ORDER NO. Description
9 2914 0050 Drift key MT1
9 2914 0060 Drift key MT2
9 2914 0020 Drift key MT3
ORDER NO. Description
9 1314 0030 Screw driver hexagonal according to DIN 911-SW 5
9 1314 0050 Screw driver hexagonal according to DIN 911-SW 6
ORDER NO. Description
2 1345 9300 Cooling bottle assembly
ORDER NO. Description
1 5080 9020 Hydraulic hose set (with quick-coupling Flat-Star A250)
ORDER NO. Description
9 9910 0080 Carrying case
ORDER NO. Description
2 2406 9800 Safety block (inlet pressure up to 140 bar, max. 25 l/min)
2 2406 9900 Safety block (inlet pressure up to 350 bar, max. 50 l/min)
ORDER NO. Description
9 9902 0120 Multi oil

Product Video

These videos are hosted on Youtube. By clicking the 'Play' button, you accept YouTube's data protection guidelines.
