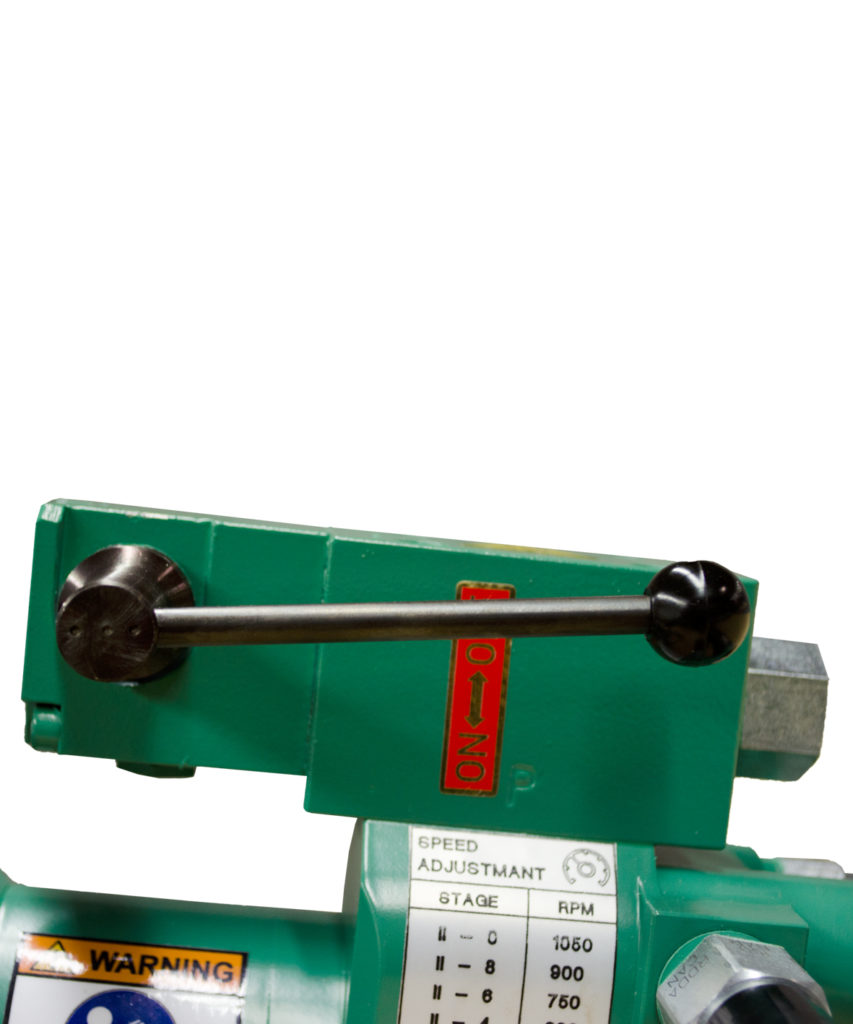

| ORDER NO. | 5 8016 0050 |
| ATEX Specification | II2GExhIIBT5Gb |
| Energy source | Hydraulic |
| Operating pressure | 140-180 bar |
| Volume flow | 20-23 l/min |
| Power | 2.30 kW |
| Saw blade max. dia. | 180.00 mm |
| Center dia. of saw blade | 22.2/30 mm |
| Gear stages | 1 |
| Speed (1st gear stage) | 1,050 rpm |
| Max. cutting depth | 50.00 mm |
| Connection | SAE Port No.8 (3/4x16UNF-2B) mm |
| Hydraulic hose connection | Flat-Star A250-OM/OF-1/2”BSP |
| Hydraulic medium | Hydraulic oil |
| Hydraulic circuit type | open circuit |
| Oil filtration class | ISO-level of purity 20/18/13 |
| Temperature of oil | -34 up to +82 °C |
| Viscosity of oil | >13 centistokes |
| Noise level LpA | 98.0 dB(A) |
| Noise level LWA | 106.0 dB(A) |
| Vibration level | <2.5 m/s² |
| Weight | 14.9 kg |
| Fields of application / branch | Energy and pipeline construction; Plant and mechanical construction |
| Bestellnummer | Bemerkung |
|---|---|
| 5 8010 8090 | Guide carriage small (aluminium) |
| 5 8011 8090 | Guide carriage small (zamak) |
| 5 8010 8100 | Guide carriage large (aluminium) |
| 5 8011 8100 | Guide carriage large (zamak) |
| For pipe diameters > 800 mm we recommend combining the guide carriage type 5 8010 8100 (as retainer for the drive unit) with an appropriate number of additional guide carriages type 5 8010 8090. |
| ORDER NO. | Description | For pipe diameter (mm) |
|---|---|---|
| 5 8002 8760 | Guide chain including tightener and 24 chain links | up to 400.00 |
| 5 8002 8770 | Guide chain including tightener and 35 chain links | up to 600.00 |
| 5 8002 8780 | Guide chain including tightener and 46 chain links | up to 800.00 |
| 5 8002 8810 | Guide chain including tightener and 57 chain links | up to 1,000.00 |
| 5 8002 8790 | Guide chain including tightener and 68 chain links | up to 1,200.00 |
| 5 8002 8820 | Guide chain including tightener and 79 chain links | up to 1,400.00 |
| 5 8002 8830 | Guide chain including tightener and 90 chain links | up to 1,600.00 |
| We will be pleased to compile the appropriate guide chain assembly for your individual application. |
| ORDER NO. | Description |
|---|---|
| 5 8002 6800 | Tightener |
| ORDER NO. | Description |
|---|---|
| 5 8001 8750 | Chain link, length 57 mm |
| 5 8001 8760 | Chain link, length 57 mm, with magnet |
| 5 8001 8860 | Chain link set (set of 5 pieces, preassembled) |
| 5 8001 8960 | Chain link set (set of 6 pieces, preassembled), with magnet |
| ORDER NO. | Description |
|---|---|
| 5 8002 8710 | Tensioning chain, length 950 mm |
| ORDER NO. | Description |
|---|---|
| 5 8003 8300 | Chain tensioner small |
| 9 4902 0100 | Chain lock for chain tensioner small for type 5 8003 8300 |
| 5 8002 8400 | Chain tensioner large |
| ORDER NO. | Description |
|---|---|
| 5 8002 9500 | Feeding pipe |
| 5 8010 9500 | Feeding pipe, angled at 90° for narrow spaces |
| ORDER NO. | Description |
|---|---|
| 5 8002 9200 | Tool set |
| ORDER NO. | Description |
|---|---|
| 5 8002 9300 | Metal carrying case with trays |
| ORDER NO. | Disc dia. [mm] | Center dia. [mm] | Cutting depth max. [mm] | For cutting |
|---|---|---|---|---|
| 9 2503 0090 | 160.00 | 30.00 | 40.00 | Steel, stainless steel from 4 mm wall thickness, plastics, PE, PVC |
| 9 2503 0120 | 180.00 | 30.00 | 50.00 | Steel, stainless steel from 4 mm wall thickness, plastics, PE, PVC |
| 9 2503 0130 | 200.00 | 30.00 | 60.00 | Steel, stainless steel from 4 mm wall thickness, plastics, PE, PVC |
| ORDER NO. | Disc dia. [mm] | Center dia. [mm] | Cutting depth max. [mm] | For cutting |
|---|---|---|---|---|
| 9 2503 0050 | 150.00 | 22.20 | 35.00 | Cast iron, ductile iron, cement, clay, GRP |
| 9 2503 0100 | 180.00 | 22.20 | 50.00 | Cast iron, ductile iron, cement, clay, GRP |
| ORDER NO. | Description | Center dia. [mm] |
|---|---|---|
| 5 8010 9720 | Adapter complete | 30.00 |
| 5 8002 8020 | Adapter ring | 22.20/30.00 |
| ORDER NO. | Description |
|---|---|
| 5 8002 9100 | Water tank 10 l |
| 9 9902 0120 | Multi oil for cleaning and protection |
| More accessories on request. |
